Primary gear shaft for MOTO GUZZI LAVERDA SCARABEO California Classic-Touring from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

F.fork-R.shock absorber

Plate set-decal-op.handbooks

Primary gear shaft

1

Ring nut

GU93601022

£48,91 Unit Price incl. VAT

2

Washer 22x20x3,9

GU95028022

£2,04 Unit Price incl. VAT

3

Clutch gear

GU30081810

£136,22 Unit Price incl. VAT

4

O-ring 23,52x1,78

GU90706235

£1,60 Unit Price incl. VAT

5

Clutch shaft

GU14210702

£79,61 Unit Price incl. VAT

6

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

7

Oil-spreading washer 25,1x36x0,5

GU14218401

£12,85 Unit Price incl. VAT

8

Idle gear Z=17

GU03211160

£507,64 Unit Price incl. VAT

9

Hose

GU03211260

£28,85 Unit Price incl. VAT

10

Belleville spring

GU04211500

£15,19 Unit Price incl. VAT

11

Disc

GU03211660

£36,84 Unit Price incl. VAT

12

Half ring

GU12211700

£11,64 Unit Price incl. VAT

13

Spacer

GU14219401

£21,67 Unit Price incl. VAT

14

Primary gear shaft

GU14210513

Not Available

15

Thrust washer sp.2

GU18211050

£12,89 Unit Price incl. VAT

15

Thrust washer sp.2,2

GU18211052

£10,39 Unit Price incl. VAT

15

Thrust washer sp.2,1

GU18211051

£12,89 Unit Price incl. VAT

15

Thrust washer sp.2,4

GU18211054

£12,89 Unit Price incl. VAT

16

Roller bearing

GU92258525

Not Available

17

Gear 5a AP 5 inn.Z=28

GU03212000

£204,86 Unit Price incl. VAT

18

Roller

GU92296750

£1,70 Unit Price incl. VAT

19

Spring

GU94321051

£1,91 Unit Price incl. VAT

20

Roller cage 30x35x13

GU92251030

£21,80 Unit Price incl. VAT

21

Bush 5a AP

GU14212210

£86,42 Unit Price incl. VAT

22

Sliding sleeve

GU30231525

£31,15 Unit Price incl. VAT

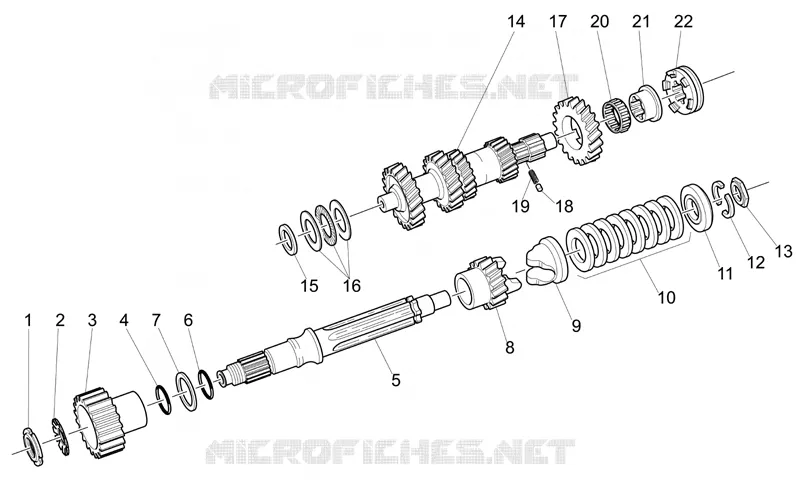

Find the detailed Primary gear shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
