Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2003
4
Trim
California Aluminium - Titanium PI
5
Parts Catalog
Transmission complete II
6
Parts Diagram
Parts Catalog
Crankshaft - Piston
by
Fuel tank
Transmission complete II
1
2
3
4
4
4
5
6
7
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
1
Transmission complete
GU03350250
Not Available
2
Transmission housing
GU30350360
Not Available
3
Stud bolt 8x46
GU96508045
£9,11 Unit Price incl. VAT
4
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
5
Cap nut M8x1,25
GU92787008
£1,34 Unit Price incl. VAT
6
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
7
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
8
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
9
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
10
Gasket ring 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
11
Gasket ring
GU12351100
£70,49 Unit Price incl. VAT
12
Roller bearing 40x55x17
GU92254340
Not Available
13
Nut
GU30356760
£26,57 Unit Price incl. VAT
14
Tap.roller bearing 25x5
GU92249227
£44,81 Unit Price incl. VAT
15
Flange
GU18352400
Not Available
16
Gasket 58,42x2,62
GU90706584
£1,60 Unit Price incl. VAT
17
Spacer
GU18355100
£16,14 Unit Price incl. VAT
18
Shim 0,1 mm
GU12355202
£2,04 Unit Price incl. VAT
18
Shim 0,15 mm
GU12355203
£1,61 Unit Price incl. VAT
19
Spacer 1,1 mm
GU19355321
£16,32 Unit Price incl. VAT
19
Spacer 1,7 mm
GU19355327
£16,18 Unit Price incl. VAT
19
Spacer 1,6 mm
GU19355326
£15,95 Unit Price incl. VAT
19
Spacer 1,3 mm
GU19355323
£14,56 Unit Price incl. VAT
19
Spacer 1,8 mm
GU19355328
£15,95 Unit Price incl. VAT
19
Spacer 1,4 mm
GU19355324
£15,95 Unit Price incl. VAT
19
Spacer 1 mm
GU19355320
£16,28 Unit Price incl. VAT
19
Spacer 1,9 mm
GU19355329
£15,95 Unit Price incl. VAT
19
Spacer 1,2 mm
GU19355322
£16,28 Unit Price incl. VAT
19
Spacer 1,5 mm
GU19355325
£16,32 Unit Price incl. VAT
20
screw
GU19357660
£1,02 Unit Price incl. VAT
21
Rear swing arm pin
GU03555250
Not Available
22
Washer 8,4x14,57x1,6
GU95005308
£1,26 Unit Price incl. VAT
23
Flange
GU17350400
£93,85 Unit Price incl. VAT
24
Gasket
GU17350700
£1,39 Unit Price incl. VAT
25
Spacer 1,1 mm
GU17355406
£12,00 Unit Price incl. VAT
25
Spacer 0,9 mm
GU17355402
£12,25 Unit Price incl. VAT
25
Spacer 1,5 mm
GU17355412
£14,65 Unit Price incl. VAT
25
Spacer 1,2 mm
GU17355408
£12,82 Unit Price incl. VAT
25
Spacer 0,8 mm
GU17355400
£11,06 Unit Price incl. VAT
25
Spacer 1 mm
GU17355404
£11,20 Unit Price incl. VAT
25
Spacer 1,3 mm
GU17355410
£14,65 Unit Price incl. VAT
26
Ball bearing 70x110x13
GU92201070
£129,37 Unit Price incl. VAT
27
Gasket ring 70X85X8
GU90417085
£65,04 Unit Price incl. VAT
28
Drive flange
GU03351450
£276,89 Unit Price incl. VAT
29
Bevel gear 8/33
GU30354602
£1 312,18 Unit Price incl. VAT
30
screw
GU12356300
£8,33 Unit Price incl. VAT
31
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
32
Cover
GU93180245
£2,63 Unit Price incl. VAT

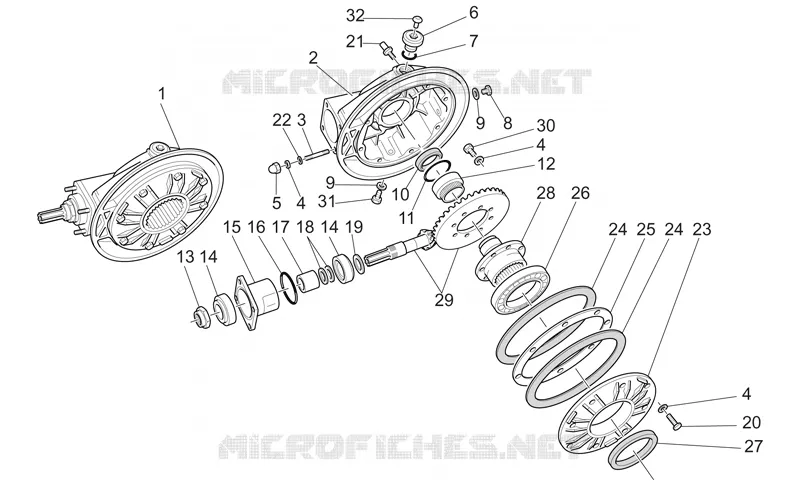

Find the detailed Transmission complete II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
