RH cylinder timing system I for California Touring E4 from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

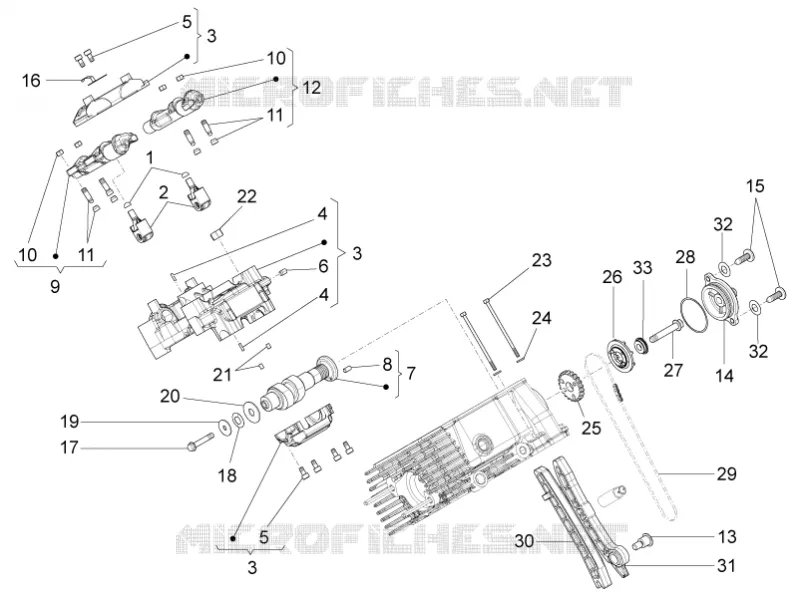

RH cylinder timing system I

1

Pad

878574

£12,38 Unit Price incl. VAT

2

Tappet

B017067

Not Available

3

Rockers axle support DX

887161

Not Available

4

Pin D. 2,5

872759

£16,14 Unit Price incl. VAT

5

screw M8x30

015792

Not Available

6

Plug M6x10

842360

£2,20 Unit Price incl. VAT

7

Cam axle

B014576

Not Available

8

Pin

976589

£0,66 Unit Price incl. VAT

9

Rocker arm assy (In LF/Ex RH)

2A000251

£209,10 Unit Price incl. VAT

10

Rocker arm adjuster nut

879916

£7,85 Unit Price incl. VAT

11

Adjuster screw

879707

£42,85 Unit Price incl. VAT

12

Rocker arm assy (In RH/Ex LF)

2A000252

£209,10 Unit Price incl. VAT

13

Spacer screw M8

878868

£8,14 Unit Price incl. VAT

14

Oil bleed cover

2A000082

£23,90 Unit Price incl. VAT

15

Torx convex big end screw

B016796

Not Available

16

Plate

B013661

£19,73 Unit Price incl. VAT

17

Screw w/ flange M6x25

414837

Not Available

18

Belleville spring

879938

£6,83 Unit Price incl. VAT

19

Shim washer

879936

£4,26 Unit Price incl. VAT

20

Shim washer

879937

£6,53 Unit Price incl. VAT

21

Roller

B013552

£3,35 Unit Price incl. VAT

22

Nut M10x1,25

825694

Not Available

23

Screw w/ flange M6x120

487444

£22,22 Unit Price incl. VAT

24

Plain washer 12x6,1x2

976674

£5,14 Unit Price incl. VAT

25

Timing gear

976350

£269,21 Unit Price incl. VAT

26

Centrifugal separator

2A000080

£16,76 Unit Price incl. VAT

27

Screw w/ flange

1A000425

£9,36 Unit Price incl. VAT

28

Gasket ring 2,62x46,52

880965

£7,78 Unit Price incl. VAT

29

Camshaft chain

976341

£116,12 Unit Price incl. VAT

30

Chain guide plate

976338

£15,74 Unit Price incl. VAT

31

Chain tensioner sliding block

976337

£15,78 Unit Price incl. VAT

32

Spring washer 5,3X10X0,5

GU95129100

£0,58 Unit Price incl. VAT

33

Spacer

2A000081

£14,83 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
