Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2013
4
Trim
California Touring ABS
5
Parts Catalog
RH cylinder timing system I
6
Parts Diagram
Parts Catalog
Rear transmission / Components
by
Locks
RH cylinder timing system I
1
2
3
3
3
4
4
5
5
6
7
8
9
10
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
32
33
1
Pad
878574
£12,38 Unit Price incl. VAT
2
Tappet
B016785
£75,73 Unit Price incl. VAT
3
Rockers axle support DX
887161
Not Available
4
Pin D. 2,5
872759
£16,14 Unit Price incl. VAT
5
screw M8x30
015792
Not Available
6
Plug M6x10
842360
£2,20 Unit Price incl. VAT
7
Cam axle
B014576
Not Available
8
Pin
976589
£0,66 Unit Price incl. VAT
9
Right exhaust left intake rocker
B0136034
£195,40 Unit Price incl. VAT
10
Rocker arm adjuster nut
879916
£7,85 Unit Price incl. VAT
11
Adjuster screw
879707
£42,85 Unit Price incl. VAT
12
Left exhaust right intake rocker
B0136054
£181,60 Unit Price incl. VAT
13
Spacer screw M8
878868
£8,14 Unit Price incl. VAT
14
Breather cover cpl.
B013479
Not Available
14
Oil bleed cover
2A000082
£23,90 Unit Price incl. VAT
15
Torx convex big end screw
875173
Not Available
16
Plate
B013661
£19,73 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Belleville spring
879938
£6,83 Unit Price incl. VAT
19
Shim washer
879936
£4,26 Unit Price incl. VAT
20
Shim washer
879937
£6,53 Unit Price incl. VAT
21
Roller
B013552
£3,35 Unit Price incl. VAT
22
Nut M10x1,25
825694
Not Available
23
Screw w/ flange M6x120
487444
£22,22 Unit Price incl. VAT
24
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
25
Timing gear
976350
£269,21 Unit Price incl. VAT
26
sheet oil breather
874601
Not Available
26
Centrifugal separator
2A000080
£16,76 Unit Price incl. VAT
27
Screw w/ flange
843060
Not Available
28
Gasket ring 2,62x46,52
880965
£7,78 Unit Price incl. VAT
29
Camshaft chain
976341
£116,12 Unit Price incl. VAT
30
Chain guide plate
976338
£15,74 Unit Price incl. VAT
31
Chain tensioner sliding block
976337
£15,78 Unit Price incl. VAT
32
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
33
Spacer
2A000081
£14,83 Unit Price incl. VAT

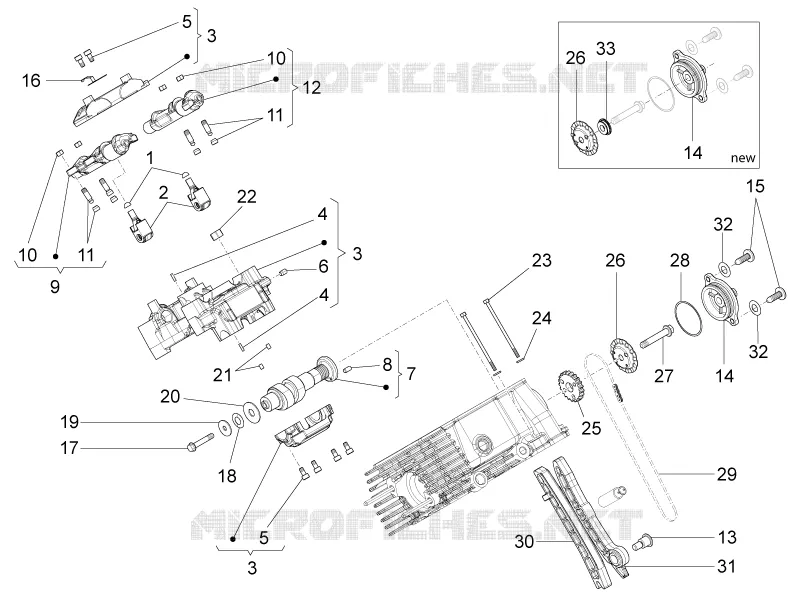

Find the detailed RH cylinder timing system I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
