1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Custom ABS
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Rear electrical system
by
Oil filters
Rear wheel
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Rear wheel rim
2B000058
£847,00 Unit Price incl. VAT
2
Rear wheel spacer
887530
£38,15 Unit Price incl. VAT
3
Bearing 6205-2rs1 25x52x15
AP8110093
£69,65 Unit Price incl. VAT
4
Snap ring d52
AP8125839
£5,14 Unit Price incl. VAT
5
Gasket ring 38x52x7
AP8125838
£2,71 Unit Price incl. VAT
6
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
7
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
8
Brake disc
887489
£53,11 Unit Price incl. VAT
9
screw
GU30611460
£4,01 Unit Price incl. VAT
10
Phonic wheel
887875
Not Available
11
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
12
Rear LH whe.ou.spacer
887495
£30,71 Unit Price incl. VAT
13
Sensor ABS
859792
Not Available
14
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
15
Rear wheel spindle
886967
£272,62 Unit Price incl. VAT
16
Rear tyre 200/60-16"x6
887575
£820,28 Unit Price incl. VAT
17
Spring drive rubber
B064290
£16,27 Unit Price incl. VAT
18
O-ring 66,40x1,78
GU90706664
£2,47 Unit Price incl. VAT
19
Flexible coupling disc
887311
£75,40 Unit Price incl. VAT
20
Flange
2B000090
£370,42 Unit Price incl. VAT
21
Screw w/ flange M10x30
B063849
£7,78 Unit Price incl. VAT
22
O-ring 56,74x3,53
887518
£2,47 Unit Price incl. VAT
23
Spring drive spacer
887461
£24,84 Unit Price incl. VAT
24
Ball bearing 30x47x9
887517
£26,76 Unit Price incl. VAT
25
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
26
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT

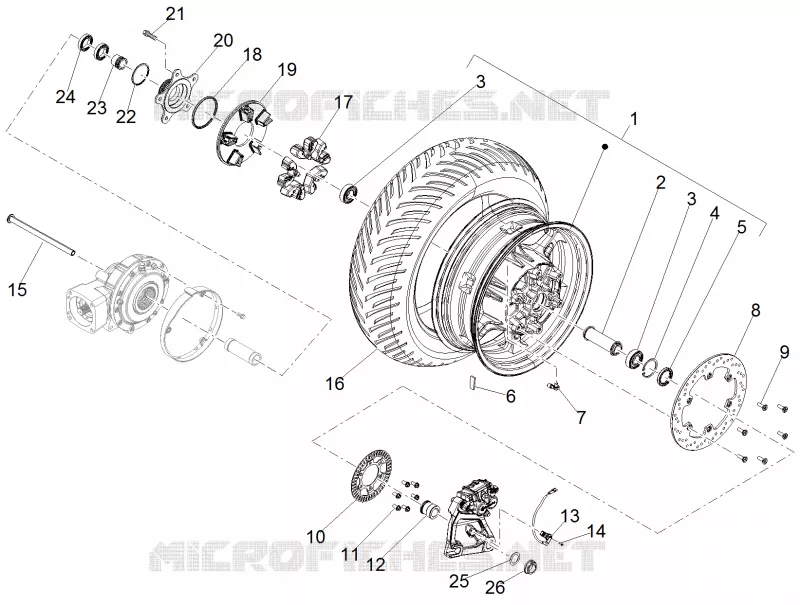

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for California Custom ABS

Central stand

Central stand

for California Custom ABS from 2015

Foot rests

Foot rests

for California Custom ABS from 2015

Engine-Completing part-Lever

Engine-Completing part-Lever

for California Custom ABS from 2015

Front electrical system

Front electrical system

for California Custom ABS from 2015

Rear master cylinder

Rear master cylinder

for California Custom ABS from 2015

Timing system

Timing system

for California Custom ABS from 2015

Central electrical system

Central electrical system

for California Custom ABS from 2015

Exhaust pipe

Exhaust pipe

for California Custom ABS from 2015

Tank cover

Tank cover

for California Custom ABS from 2015

Gear lever

Gear lever

for California Custom ABS from 2015

Rear transmission / Components

Rear transmission / Components

for California Custom ABS from 2015

Lubrication

Lubrication

for California Custom ABS from 2015

Gear box / Selector / Shift cam

Gear box / Selector / Shift cam

for California Custom ABS from 2015

Rear electrical system

Rear electrical system

for California Custom ABS from 2015

Rear wheel

Rear wheel

for California Custom ABS from 2015

Oil filters

Oil filters

for California Custom ABS from 2015

Transmission complete

Transmission complete

for California Custom ABS from 2015

Gear box - Gear assembly

Gear box - Gear assembly

for California Custom ABS from 2015

Handlebar - Controls

Handlebar - Controls

for California Custom ABS from 2015

Front master cilinder

Front master cilinder

for California Custom ABS from 2015

Rear mudguard

Rear mudguard

for California Custom ABS from 2015

Clutch control

Clutch control

for California Custom ABS from 2015

Crankcases I

Crankcases I

for California Custom ABS from 2015

Central body

Central body

for California Custom ABS from 2015

Front brake caliper

Front brake caliper

for California Custom ABS from 2015

Rear brake caliper

Rear brake caliper

for California Custom ABS from 2015

Oil pump

Oil pump

for California Custom ABS from 2015

Fuel vapour recover system

Fuel vapour recover system

for California Custom ABS from 2015

Cdi magneto assy / Ignition unit

Cdi magneto assy / Ignition unit

for California Custom ABS from 2015

Blow-by system

Blow-by system

for California Custom ABS from 2015

Steering

Steering

for California Custom ABS from 2015

Starter / Electric starter

Starter / Electric starter

for California Custom ABS from 2015

Swing arm

Swing arm

for California Custom ABS from 2015

Crankcases I

Crankcases I

for California Custom ABS from 2015

Saddle compartment

Saddle compartment

for California Custom ABS from 2015

Cylinder head - valves

Cylinder head - valves

for California Custom ABS from 2015

Frame

Frame

for California Custom ABS from 2015

Throttle body

Throttle body

for California Custom ABS from 2015

Fuel tank

Fuel tank

for California Custom ABS from 2015

Oil radiator

Oil radiator

for California Custom ABS from 2015

Rear lights

Rear lights

for California Custom ABS from 2015

Instruments

Instruments

for California Custom ABS from 2015

Decal

Decal

for California Custom ABS from 2015

Front mudguard-Pillar

Front mudguard-Pillar

for California Custom ABS from 2015

Cylinder - Piston

Cylinder - Piston

for California Custom ABS from 2015

Front wheel

Front wheel

for California Custom ABS from 2015

RH cylinder timing system I

RH cylinder timing system I

for California Custom ABS from 2015

Locks

Locks

for California Custom ABS from 2015

Head cover

Head cover

for California Custom ABS from 2015

Air box

Air box

for California Custom ABS from 2015

Protection

Protection

for California Custom ABS from 2015

Saddle

Saddle

for California Custom ABS from 2015

Shock absorber

Shock absorber

for California Custom ABS from 2015

Clutch

Clutch

for California Custom ABS from 2015

LH cylinder timing system I

LH cylinder timing system I

for California Custom ABS from 2015

ABS Brake system

ABS Brake system

for California Custom ABS from 2015

Drive shaft

Drive shaft

for California Custom ABS from 2015

Front lights

Front lights

for California Custom ABS from 2015

Front fork Sachs

Front fork Sachs

for California Custom ABS from 2015

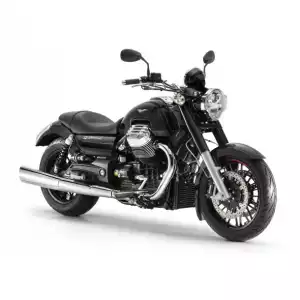

MOTO GUZZI LAVERDA SCARABEO California Custom ABS 2015
