1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Custom ABS
5
Parts Catalog
Rear mudguard
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Clutch control
Rear mudguard
1
2
3
3
3
4
5
6
6
7
7
7
8
9
10
11
12
12
12
13
13
13
13
13
13
14
15
16
16
17
17
18
18
19
19
20
20
21
22
23
24
25
26
1
Right shock absorber closing
B06311600YE5
£69,71 Unit Price incl. VAT
1
Right shock absorber closing
B0631160000YB2
£50,64 Unit Price incl. VAT
1
Black right shock absorber closing
B06311600XN2
£69,71 Unit Price incl. VAT
1
Unfinished right shock absorber closing
B063116
£68,40 Unit Price incl. VAT
2
Unfinished left shock absorber closing
B063117
£68,40 Unit Price incl. VAT
2
Left shock absorber closing
B06311700YE5
£69,71 Unit Price incl. VAT
2
Left shock absorber closing
B0631170000YB2
£50,64 Unit Price incl. VAT
2
Black left shock absorber closing
B06311700XN2
£69,71 Unit Price incl. VAT
3
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
4
Rear mudguard, black
88748700XN2
£402,40 Unit Price incl. VAT
4
Rear mudguard blank
887487
£280,19 Unit Price incl. VAT
4
Rear mudguard, blue
88748700000YB2
£292,24 Unit Price incl. VAT
4
Rear mudguard, grey
88748700YE5
Not Available
5
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
6
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
7
T bush *
AP8121114
£4,49 Unit Price incl. VAT
8
Mudguard sub-frame with I.P.
B063302
£164,03 Unit Price incl. VAT
9
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
Number plate support
B063303
£22,54 Unit Price incl. VAT
12
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
13
Spring plate M5
248419
£2,00 Unit Price incl. VAT
14
Number plate support
B063870
£22,13 Unit Price incl. VAT
15
Lat. reflectors support
2B000160
£31,55 Unit Price incl. VAT
16
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
17
Rear reflector, red
AP8124718
£16,44 Unit Price incl. VAT
18
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
19
Reflector support
2B000159
£33,12 Unit Price incl. VAT
20
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
21
Rear retroreflector kit USA-CDN
2B000082
£44,78 Unit Price incl. VAT
22
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
23
Self-locking nut M5
AP8152306
Not Available
24
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
25
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
26
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT

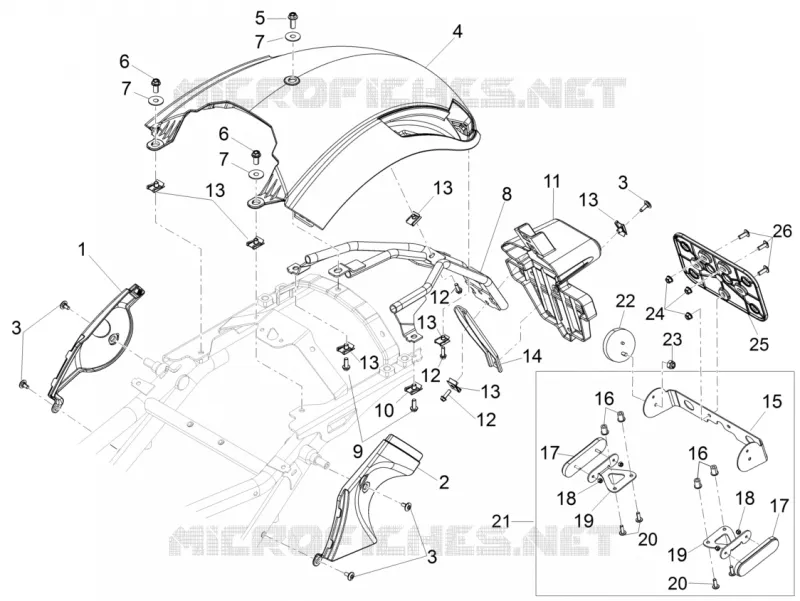

Find the detailed Rear mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
