Engine displacement
200
2
Model
SCARABEO
3
Year
2011
4
Trim
Scarabeo i.e. light
5
Parts Catalog
Electrical system II
6

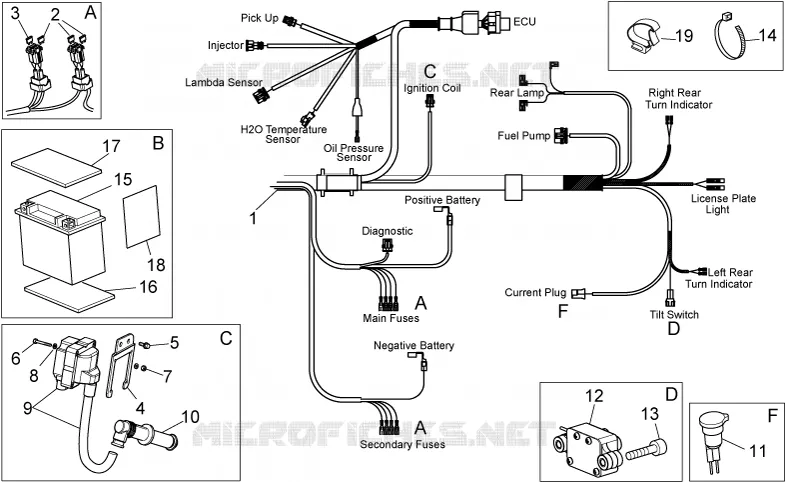

Parts Diagram
Parts Catalog
Starter motor
by
Injection unit
Electrical system II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Main wiring harness
642817
£662,23 Unit Price incl. VAT
2
Fuse 20A
JC36711X92000
£1,30 Unit Price incl. VAT
3
Fuse 15A
JC36712X92000
£1,30 Unit Price incl. VAT
4
Coil support plate
JC33210X94000
£21,31 Unit Price incl. VAT
5
screw M6x12
JCA20106012JN00
£1,16 Unit Price incl. VAT
6
screw M3x25
JCC42163025JN00
£1,27 Unit Price incl. VAT
7
Nut M3
JCB56100300JN00
£1,30 Unit Price incl. VAT
8
Washer M3
JCD11200300JN00
£0,35 Unit Price incl. VAT
9
HT coil+cable
JC33400X94000
Not Available
10
Scr. sparkplug cap
JC33510X94000
Not Available
11
Socket
JC33700X92000
£13,16 Unit Price incl. VAT
12
Security sensor
JC37910X94000
£47,09 Unit Price incl. VAT
13
Screw w/ flange M6x30
JCA20106030JN00
£1,08 Unit Price incl. VAT
14
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
15
Battery (Yuasa) 12V-10Ah
583158
£132,76 Unit Price incl. VAT
16
Support rubber part
JC33651X92000
£7,19 Unit Price incl. VAT
17
Support rubber part
JC33653X92000
£3,89 Unit Price incl. VAT
18
Support rubber part
JC33652X92000
£5,93 Unit Price incl. VAT
19
Pipes/cables retainer spring
CM013202
£2,60 Unit Price incl. VAT
