Engine displacement
125
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
Valve control
6
Parts Diagram
Parts Catalog
Cylinder
by
RH Semi-crankcase
Valve control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
Lateral cover cpl.
8900026
Not Available
2
Lateral cover
8900027
Not Available
3
Ring
8900028
Not Available
4
O-ring 64x3,5
8900029
Not Available
5
Camshaft cpl.
8900040
Not Available
6
Gear
8900041
Not Available
7
Crown holder
8900042
Not Available
8
Plate A
8900043
Not Available
9
Camshaft chain
8900141
Not Available
10
Plate B
8900050
Not Available
11
Upper chain guide plate
8900051
Not Available
12
Chain tensioner
8900052
Not Available
13
Gasket
8900053
Not Available
14
Pin
8900054
Not Available
15
Chain guide
8900055
Not Available
16
Screw w/ flange M6x22
8900364
Not Available
17
screw M6
8900371
Not Available
18
O-ring 75x2,5
8900445
Not Available
19
O-ring 9,5x1,5
8900449
Not Available
20
Screw w/ flange M6x20
8900533
Not Available
21
Screw w/ flange M6x10
8900512
Not Available
22
Screw w/ flange M6x12
8900513
Not Available
23
Screw w/ flange M6x14
8900514
Not Available

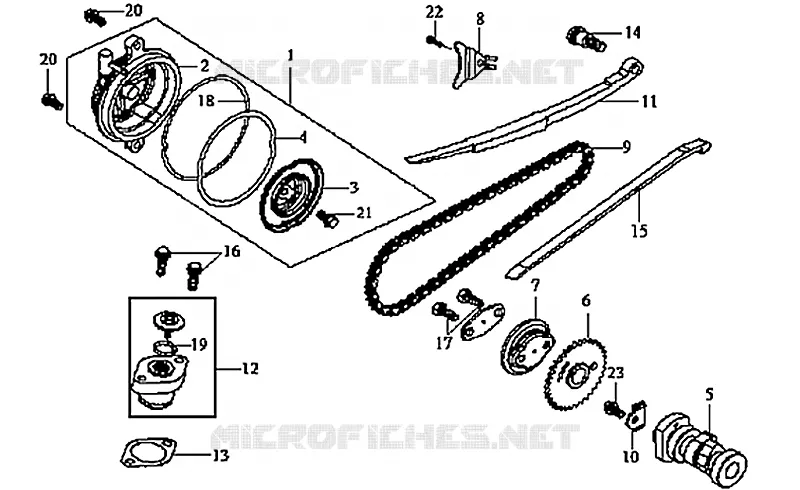

Find the detailed Valve control MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
