Engine displacement
125
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
RH Semi-crankcase
6
Parts Diagram
Parts Catalog
Valve control
by
Oil pump
RH Semi-crankcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
24
25
25
26
26
26
26
26
26
26
26
27
28
29
1
RH Semi-crankcase
8900009
Not Available
1
RH Semi-crankcase
8900718
Not Available
2
Gasket
8900016
Not Available
3
Oil plug
8900032
Not Available
4
Oil filter
8900069
Not Available
5
Oil filter spring
8900070
Not Available
6
Oil level plug
8900073
Not Available
7
Oil seal
8900129
Not Available
8
Gasket
8900130
Not Available
9
Water pump cover
8900131
Not Available
9
Water pump cover
8900720
Not Available
10
Water pump shaft assy.
8900132
Not Available
11
Stator cpl.
8900200
Not Available
11
Stator cpl.
8900719
Not Available
12
Cover 14MM
8900717
Not Available
12
Cover 14MM
8900372
Not Available
13
Washer 7,2x13x1,2
8900411
Not Available
14
Washer
8900418
Not Available
15
Bearing BRG6901
8900432
Not Available
16
Oil seal 12x20x5
8900440
Not Available
17
O-ring 30,8
8900447
Not Available
18
O-ring 13,8
8900448
Not Available
19
Hex screw
8900462
Not Available
20
Hex screw
8900463
Not Available
21
Pin 8x14
8900483
Not Available
22
Stop ring
8900488
Not Available
23
Screw w/ flange M6x10
8900512
Not Available
24
Screw w/ flange M6x22
8900518
Not Available
25
Screw w/ flange M6x32
8900520
Not Available
26
Screw w/ flange M6x50
8900522
Not Available
27
Screw w/ flange M6x125
8900525
Not Available
28
Water pump impeller cpl.
8900128
Not Available
29
Bearing 6000
8900534
Not Available

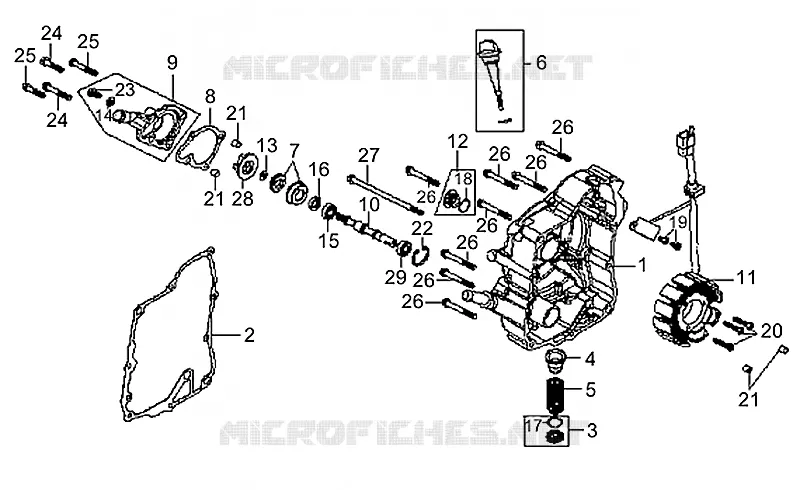

Find the detailed RH Semi-crankcase MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
