Engine displacement
150
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
Primary transm.
6

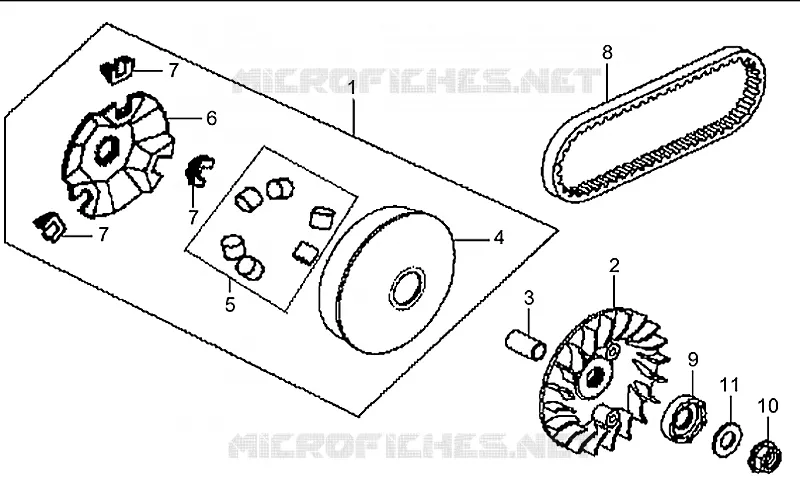

Parts Diagram
Parts Catalog
LH Semi-crankcase
by
Speed variator w/ clutch
Primary transm.
1
2
3
4
5
6
7
7
7
8
9
10
11
1
Pulley assy., driving
8900727
Not Available
1
Pulley assy., driving
8900726
Not Available
1
Pulley assy., driving
8900149
Not Available
2
Fixed pulley
8900151
Not Available
2
Fixed pulley
8900725
Not Available
3
Spacer
8900152
Not Available
4
Pulley assy., driving
8900153
Not Available
5
Pin roller 14,5g
8900154
Not Available
5
Pin roller 12g
8900730
Not Available
5
Pin roller 13,4g
8900729
Not Available
6
Ramp plate
8900155
Not Available
6
Ramp plate
8900728
Not Available
7
Slider
8900853
Not Available
7
Slider
8900156
Not Available
8
V-belt
8900140
Not Available
9
Toothed cup
8900192
Not Available
10
Flanged nut M12
8900397
Not Available
11
Washer M12,2x29x2,5
8900412
Not Available
