Engine displacement
125
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Front body/Headlight
by
Front wheel
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
17
1
Hose clamp
8900242
Not Available
2
Cable-guide ring
8900244
Not Available
3
Seating A
8900249
Not Available
4
Seating B
8900250
Not Available
5
Return nut
8900251
Not Available
6
RH hub cpl.
8900272
Not Available
7
LH hub cpl.
8900273
Not Available
8
Stem base
8900286
Not Available
9
Nut
8900291
Not Available
10
Seating C
8900292
Not Available
11
Dust cover ring
8900293
Not Available
12
Lower dust cover ring
8900294
Not Available
13
Front mudguard, silver
8900298
Not Available
13
Front mudguard, red
8900836
Not Available
13
Front mudguard, black
8900297
Not Available
13
Front mudguard, blue
8900296
Not Available
14
Self-tap screw
8900395
Not Available
15
Screw w/ flange M6x12
8900501
Not Available
16
Screw w/ flange M10x40
8900511
Not Available
17
Ball bearing
8900530
Not Available

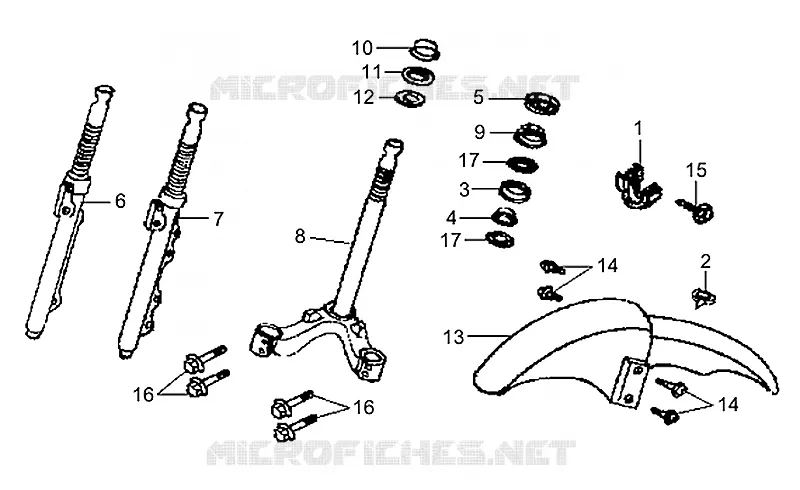

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
