1
Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Variator assembly
6
Parts Diagram
Parts Catalog
Rear body II
by
Carburettor II
Variator assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Half-pulley assy., driving
AP8580264
Not Available
1
Half-pulley assy., driving
AP8580222
Not Available
2
Sliding block
AP8577050
Not Available
2
Sliding block
AP8550448
Not Available
3
Pin roller-set
AP8580221
Not Available
3
Pin roller
AP8577051
Not Available
4
Ramp plate
AP8580088
Not Available
4
Ramp plate
AP8577052
Not Available
5
Spacer
AP8580075
Not Available
6
Fixed pulley
AP8577053
Not Available
6
Fixed pulley
AP8540165
Not Available
7
Washer 1x32x17
AP8550131
Not Available
8
Washer 2x35x17
AP8577058
Not Available
8
Washer 0,5x35x17
AP8550133
Not Available
9
Nut cpl.
AP8550134
Not Available
9
Nut
AP8580095
Not Available
10
Toothed cup
AP8580135
Not Available
11
V-belt
AP8575042
Not Available
11
V-belt
AP8577059
Not Available
12
Belleville spring
AP8577057
Not Available
13
Special screw
AP8575030
Not Available
14
Toothed pulley
AP8580199
Not Available

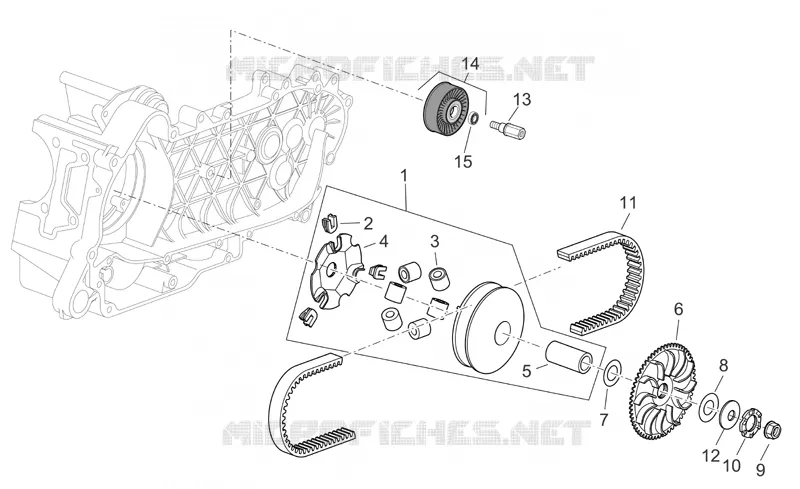

Find the detailed Variator assembly MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
