Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Variator cover
6
Parts Diagram
Parts Catalog
Front caliper
by
Electrical system II
Variator cover
1
2
3
4
5
6
7
7
8
8
9
10
10
10
11
12
13
13
14
15
15
16
16
17
18
18
19
20
20
20
21
22
1
Cover
AP8577005
Not Available
2
screw
AP8551014
Not Available
3
Variator cover
AP8577004
Not Available
4
Bush
AP8550347
Not Available
5
Bearing
AP8550580
Not Available
6
Snap ring
AP8550578
Not Available
7
Pin d.9,5 h=15
AP8550107
Not Available
8
Screw w/ flange M6x30
AP8550558
Not Available
9
Air deflector
AP8580136
Not Available
10
screw
AP8550024
Not Available
11
Front slide piece
AP8144547
£5,75 Unit Price incl. VAT
12
Rear slide piece
AP8144548
Not Available
13
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
14
Crank-case cover
AP8168599
£43,80 Unit Price incl. VAT
15
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
16
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
17
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
18
Bush
AP8121167
£4,46 Unit Price incl. VAT
19
T bush *
AP8121725
£1,88 Unit Price incl. VAT
20
Hex socket screw M6x70
AP8150342
£1,33 Unit Price incl. VAT
21
Filter
AP8577006
Not Available
22
Self-tap screw 3x20
AP8580061
Not Available

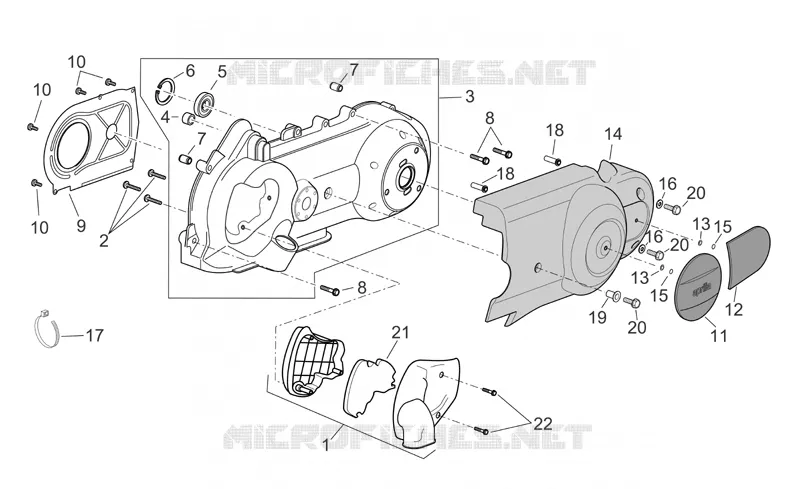

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
