Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Front electrical system
by
Handlebar - Controls
Frame
1
2
3
4
5
6
6
7
7
7
7
8
8
9
9
9
9
10
10
10
10
10
11
11
11
11
11
12
12
12
12
13
13
14
15
16
17
18
19
20
20
20
21
21
21
21
1
Chassis
2B001055
£1 289,59 Unit Price incl. VAT
2
Plaque
B063287
£85,52 Unit Price incl. VAT
3
Bras
2B002325
£277,84 Unit Price incl. VAT
4
LH cradle arm
2B002326
Not Available
5
Traverse
2B002810
£46,51 Unit Price incl. VAT
6
Rivet en plastique
AP8102671
£0,29 Unit Price incl. VAT
7
Rondelle fer plate
AP8150009
£1,26 Unit Price incl. VAT
8
Hex socket screw M10x30
GU98682530
Not Available
9
Rondelle 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
10
Caoutchouc pot
AP8144071
£13,10 Unit Price incl. VAT
11
Rondelle
AP8150018
£1,88 Unit Price incl. VAT
12
Entretoise
2B003078
£4,79 Unit Price incl. VAT
13
Vis
AP8150048
£2,48 Unit Price incl. VAT
14
Caoutchouc
AP8120311
£3,73 Unit Price incl. VAT
15
Pivot
2B002817
£17,32 Unit Price incl. VAT
16
Pivot
2B001612
£21,80 Unit Price incl. VAT
17
Pivot
2B001035
£21,47 Unit Price incl. VAT
18
Pivot M10x205
GU98110199
£37,12 Unit Price incl. VAT
19
Caoutchouc
GU91551010
£8,06 Unit Price incl. VAT
20
ECROU
967363
£1,27 Unit Price incl. VAT
21
VIS M8x20
2B002311
£2,34 Unit Price incl. VAT

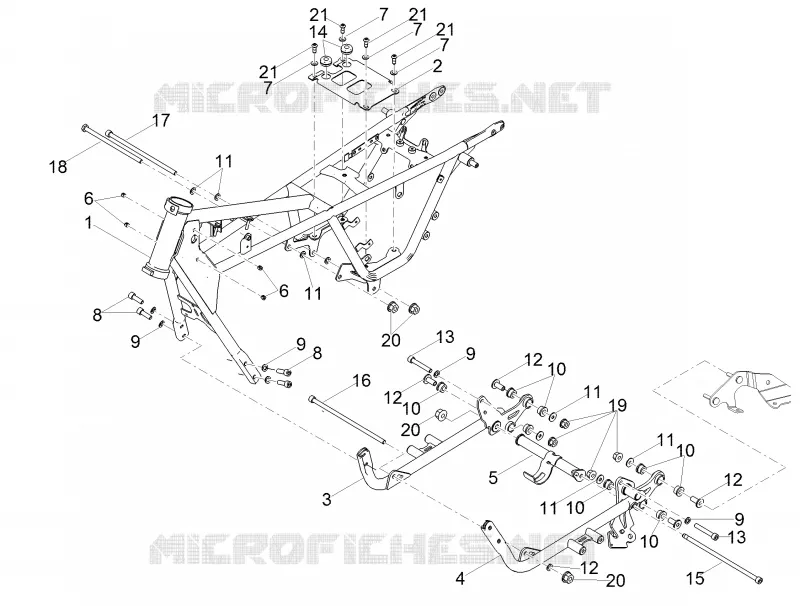

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
