Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Bobber
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Gear lever
by
Secondary air
Drive shaft
1
1
2
2
2
2
3
3
4
4
5
6
6
6
6
7
8
8
9
1
Vis
GU19062261
£42,49 Unit Price incl. VAT
2
Demi Roulement
1A0068960G
Not Available
2
Demi Roulement
1A0068960R
Not Available
2
Demi Roulement
1A0068960B
Not Available
3
Demi-roulement
1A0066680V
Not Available
3
Demi-roulement
1A0066680N
Not Available
3
Demi-roulement
1A0066680G
Not Available
4
Bushing
GU27061885
£8,65 Unit Price incl. VAT
5
Demi-etau
GU27066460
£43,74 Unit Price incl. VAT
6
Bielle
1A005325AA
Not Available
6
Bielle cpl.
1A005325BB
Not Available
7
Arbre moteur cpl.
1A006671AA
Not Available
7
Arbre moteur cpl.
1A006671BB
Not Available
8
Demi-roulement
1A0066690N
Not Available
8
Demi-roulement
1A0066690V
Not Available
8
Demi-roulement
1A0066690G
Not Available
9
Bouchon
GU19065400
£13,62 Unit Price incl. VAT

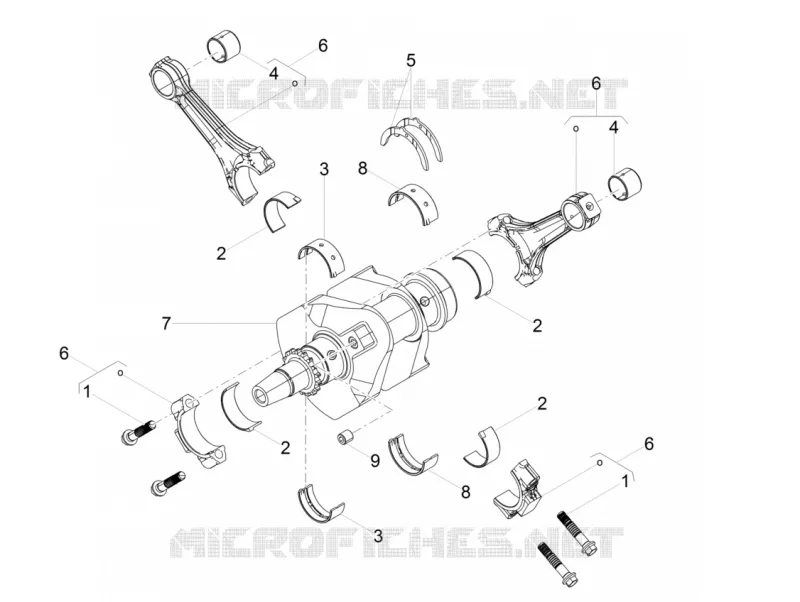

Find the detailed Drive shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
