1
Engine displacement
750
2
Model
V75
3
Year
1998
4
Trim
V 75 PA Nuovo Tipo
5
Parts Catalog
Front/Rear mudguard
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Footrests-Stands
Front/Rear mudguard
1
2
3
4
4
5
6
7
8
9
9
9
10
10
10
10
11
11
11
11
12
12
12
13
13
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
1
Front mudguard, white
GU20434420
Not Available
1
Mudguard, blank
GU204344201
Not Available
1
Front mudguard, c.blue
GU20434423
£219,02 Unit Price incl. VAT
1
Front mudguard, r.blue
GU20434424
Not Available
2
Stabilization plate
GU31436665
Not Available
3
screw
GU98230826
£7,98 Unit Price incl. VAT
4
O-ring
GU90706092
£0,89 Unit Price incl. VAT
5
Spacer
GU91180829
Not Available
6
Special screw
GU31439565
Not Available
7
Eyelet
GU28659740
£12,58 Unit Price incl. VAT
8
Splash guard
GU20438720
Not Available
9
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
10
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
11
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
12
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
13
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
14
Rear mudguard
GU19437015
Not Available
15
Rubber spacer
GU93110082
Not Available
16
Rear headlight supp.
GU27474385
Not Available
17
Spacer
GU91180607
Not Available
18
Rubber spacer
GU91551085
Not Available
19
Grommet
GU91551092
Not Available
20
Number plate holder
GU14474650
Not Available
21
screw
GU98052220
Not Available
22
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
23
Spacer
GU90716057
Not Available
24
Nut
GU92630105
£1,68 Unit Price incl. VAT
25
Toolkit
GU28929940
Not Available
26
Operator's handbook-I-
GU19900015
Not Available
26
Operator's handbook-uk-
GU20900020
£13,93 Unit Price incl. VAT

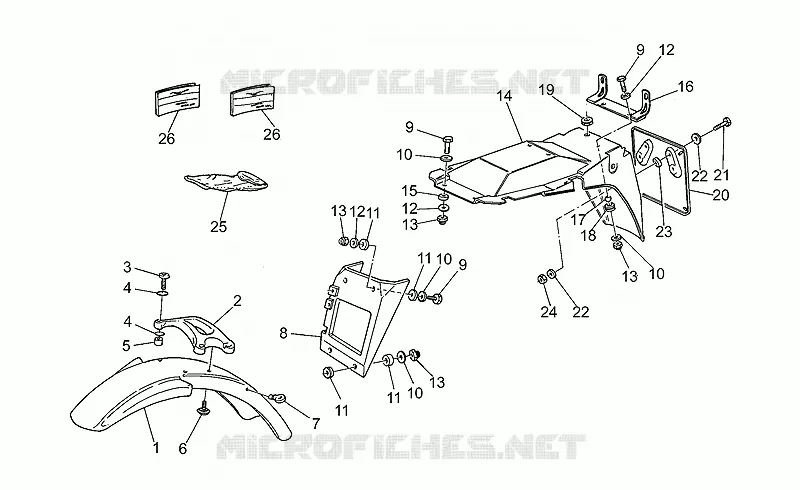

Find the detailed Front/Rear mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
