Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front body - Handguard
6
Parts Diagram
Parts Catalog
by
Ignition unit II
Front body - Handguard
1
2
3
4
5
6
7
8
8
9
10
10
10
11
11
11
11
12
12
13
13
14
1
Windscreen
AP8168015
Not Available
2
RH handguard
AP8178657
Not Available
2
RH handguard, blue
AP8168833
Not Available
2
RH handguard, sky blue
AP8179570
Not Available
2
Prot.mains d.,gris
AP8179553
£103,06 Unit Price incl. VAT
2
RH handguard, red
AP8179588
Not Available
2
RH handguard, black
AP8178705
Not Available
3
LH handguard, black
AP8178706
Not Available
3
Prot.mains g.,gris
AP8179554
£98,15 Unit Price incl. VAT
3
Prot-main gauche
AP8178658
£98,15 Unit Price incl. VAT
3
LH handguard, sky blue
AP8179571
Not Available
3
LH handguard, red
AP8179589
Not Available
3
LH handguard, blue
AP8168834
Not Available
4
Prot-main int.droite;
AP8158946
£48,83 Unit Price incl. VAT
5
Caoutchouc flanc;
AP8144081
£3,42 Unit Price incl. VAT
6
RH support bow
AP8146952
Not Available
7
LH support bow
AP8146953
Not Available
8
Vis bride
AP8152288
£2,20 Unit Price incl. VAT
9
Clip
AP8102375
£2,20 Unit Price incl. VAT
10
Caoutchouc avec insert
AP8120531
£6,84 Unit Price incl. VAT
11
Vis bride
AP8152298
£3,48 Unit Price incl. VAT
12
VIS AUTOFILETT. TCB 4X1
AP8150362
£1,88 Unit Price incl. VAT
13
Vis à tête bombée à six pans creux
AP8152267
£2,36 Unit Price incl. VAT
14
Prot-main int.gauche;
AP8158947
£48,83 Unit Price incl. VAT

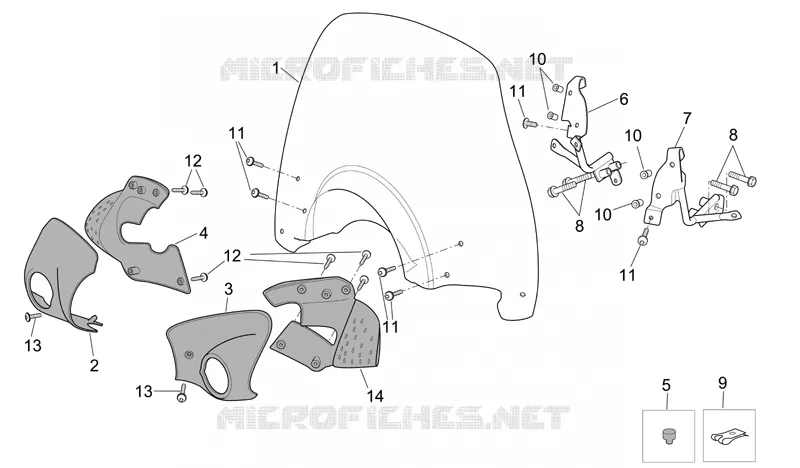

Find the detailed Front body - Handguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
