Engine displacement
250
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front body - Internal shield
6
Parts Diagram
Parts Catalog
Acc. - Mechanics anti-theft
by
Fuel vapour recover system
Front body - Internal shield
1
2
2
3
4
1
Tablier interne peint gris p.
AP8178661
£59,99 Unit Price incl. VAT
1
Internal shield, cyan
AP8179564
Not Available
1
Internal shield, grey
AP8179548
Not Available
1
Internal shield, blue
AP8168825
Not Available
1
Internal shield, silver
AP8178743
Not Available
1
Internal shield, red
AP8179582
Not Available
1
Internal shield, grey
AP8178703
Not Available
2
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
3
Vis
AP8150426
£1,27 Unit Price incl. VAT
4
Clip pour vis taraud
AP8201763
£1,85 Unit Price incl. VAT

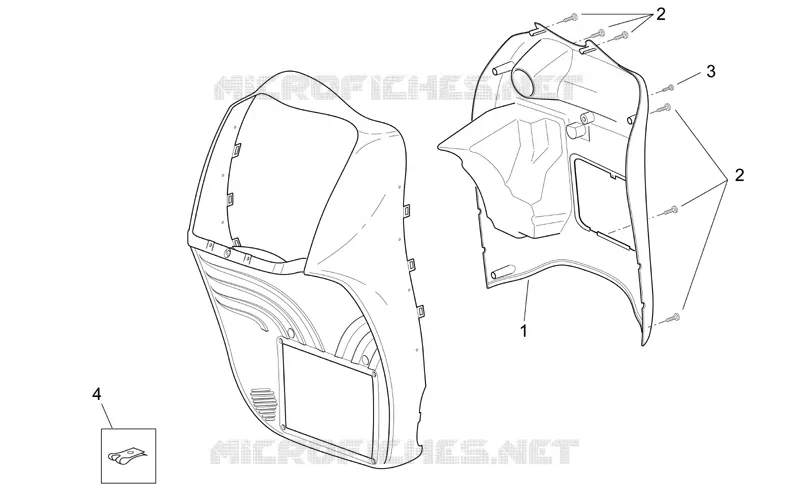

Find the detailed Front body - Internal shield MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
