Parts Catalog
Central body II
6

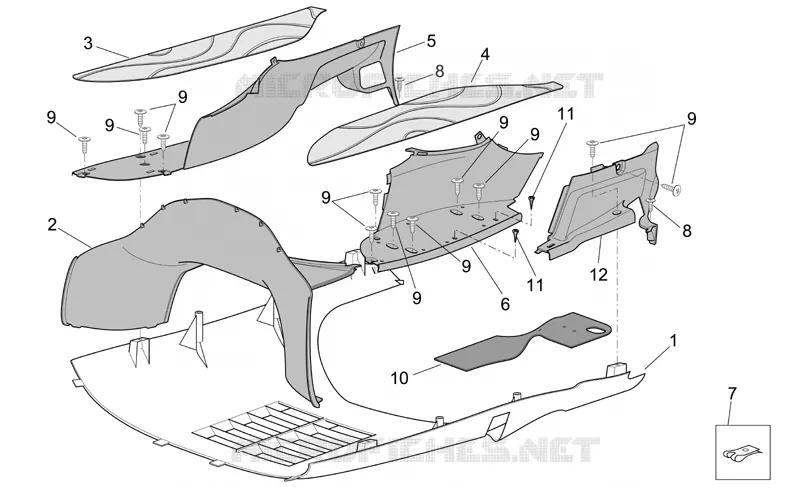

Parts Diagram
Parts Catalog
Rear wheel
by
Marzocchi front fork - Hubs, sleeves
Central body II
1
2
3
4
5
6
7
8
8
9
9
9
9
9
9
9
9
9
10
11
11
12
1
Underpanel
AP8179574
Not Available
1
Underpanel
AP8179584
Not Available
1
Low. prot.fairing
AP8168881
Not Available
1
Underpanel
AP8178663
£253,67 Unit Price incl. VAT
1
Underpanel, blue
AP8178039
Not Available
1
Low. prot.fairing,grey
AP8178707
Not Available
1
Underpanel
AP8179207
Not Available
1
Underpanel
AP8179566
Not Available
1
Underpanel
AP8179056
Not Available
1
Underpanel
AP8179208
Not Available
1
Underpanel
AP8179592
Not Available
2
Black tunnel
AP8168877
Not Available
3
RH mat, black
AP8158923
£32,14 Unit Price incl. VAT
4
LH mat, black
AP8158924
£32,14 Unit Price incl. VAT
5
RH Floor panel, black
AP8168879
£42,60 Unit Price incl. VAT
6
LH Floor panel, black
AP8168880
£42,60 Unit Price incl. VAT
7
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
8
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
9
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
10
Protection
AP8178357
Not Available
10
Protection
AP8168598
Not Available
11
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
12
Cover black
AP8168947
£14,68 Unit Price incl. VAT
