Rear master cylinder for V7 Stone from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear master cylinder

1

Brake lever

887910

£45,72 Unit Price incl. VAT

2

Lever rubber

AP8120912

£3,68 Unit Price incl. VAT

3

Spring

978969

£5,89 Unit Price incl. VAT

4

O-ring 11,11x1,78

AP8144007

£1,39 Unit Price incl. VAT

5

Washer 8,4x18x2

GU95005310

Not Available

6

Dado autobloccante M6x1

GU92630206

£2,48 Unit Price incl. VAT

7

Flanged nut M8

GU92660021

£1,60 Unit Price incl. VAT

8

Block

GU18257551

£70,18 Unit Price incl. VAT

9

Washer 8,4x14,57x1,6

GU95005308

£1,26 Unit Price incl. VAT

10

Split pin

GU95500221

£1,31 Unit Price incl. VAT

11

Crinkle washer D15 F8,4 S1,5 - INOX

658837

£0,95 Unit Price incl. VAT

12

Nut

GU92609007

£1,10 Unit Price incl. VAT

13

Master cylinder rod

978970

£13,57 Unit Price incl. VAT

14

Rear master cylinder

AP8133643

£221,90 Unit Price incl. VAT

15

Rear brake pump union

AP8213057

£28,61 Unit Price incl. VAT

16

Rubber bellows

AP8113288

£48,95 Unit Price incl. VAT

17

Hex socket screw M6x25

GU98370625

£5,23 Unit Price incl. VAT

18

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

19

Spring plate M5

248419

£2,00 Unit Price incl. VAT

20

Hose clamp D10,1*

AP8101594

Not Available

21

Oil pipe

GU00823950050

£26,57 Unit Price incl. VAT

22

Brake oil tank complete

AP8113241

Not Available

23

Tank cap

AP8113553

£23,46 Unit Price incl. VAT

24

Brake lever pin

887911

£16,39 Unit Price incl. VAT

25

Brake m.cyl.protection, black

GU01665410

£22,32 Unit Price incl. VAT

26

Rubber pedal

887908

Not Available

27

Rear brake lever bush

887952

£20,64 Unit Price incl. VAT

28

Screw M8x50

B063443

£4,82 Unit Price incl. VAT

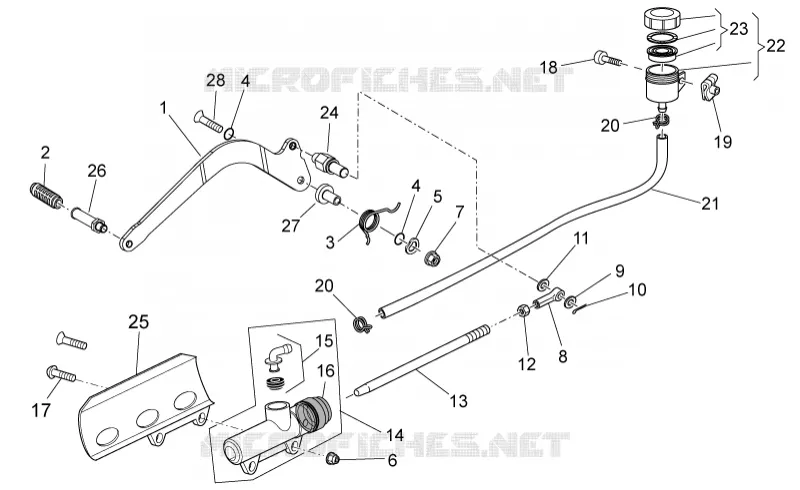

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
