Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Crankcase
by
Front wheel
Rear body I
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
13
14
14
15
16
1
Inspection cover
AP8168878
Not Available
2
Undersaddle silver
AP8178745
Not Available
2
Undersaddle, grey
AP8178708
Not Available
2
Undersaddle blue
AP8179063
Not Available
2
Undersaddle, p.grey
AP8178664
Not Available
2
Undersaddle, red
AP8179595
Not Available
2
Undersaddle, grey
AP8179559
Not Available
2
Undersaddle sky blue
AP8179577
Not Available
3
Die cut protection
AP8178366
Not Available
4
Fuel tank cover
AP8178367
Not Available
5
Vis
AP8152345
£1,46 Unit Price incl. VAT
6
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
7
Vis bride
AP8152273
£1,88 Unit Price incl. VAT
8
Self-locking nut M5
AP8152306
Not Available
9
Tige fixation carène
AP8144109
£10,37 Unit Price incl. VAT
10
Clip
AP8102375
£2,20 Unit Price incl. VAT
11
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
12
Support catadioptre;
AP8134677
£22,54 Unit Price incl. VAT
13
Catadioptre arrière, rouge
AP8124718
£16,44 Unit Price incl. VAT
14
Vis bride
AP8152246
£4,03 Unit Price incl. VAT
15
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
16
Porte-plaque;
AP8149034
£25,42 Unit Price incl. VAT

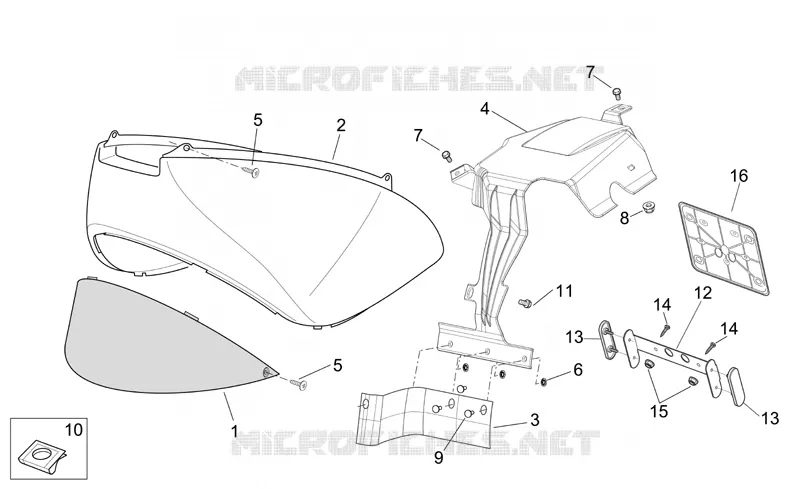

Find the detailed Rear body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
