Gear box selector for V7 II Stornello ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear box selector

1

Fifth wheel

GU05239330

£1,93 Unit Price incl. VAT

2

Circlip

GU90271014

£0,89 Unit Price incl. VAT

3

Spacer

2A000467

£3,77 Unit Price incl. VAT

4

Spring

B063956

£33,08 Unit Price incl. VAT

5

Preselection complete

2A000219

Not Available

6

Spring

GU05238231

£5,18 Unit Price incl. VAT

7

Bushing

GU05238431

£15,12 Unit Price incl. VAT

8

Index assy. lever

B064112

£12,23 Unit Price incl. VAT

9

Spacer

GU05234230

£9,40 Unit Price incl. VAT

10

Circlip

GU90353014

£7,98 Unit Price incl. VAT

11

Index spring

B064113

£3,97 Unit Price incl. VAT

12

Shift cam cpl.

2A000222

£160,69 Unit Price incl. VAT

13

Pin

GU05234631

£5,16 Unit Price incl. VAT

14

Spacer

GU05235531

£56,64 Unit Price incl. VAT

15

Circlip

GU90271022

£1,42 Unit Price incl. VAT

16

Rod

2A000224

£15,89 Unit Price incl. VAT

17

Fork 2-3 speed

2A000226

£33,48 Unit Price incl. VAT

18

5-6 gear fork

2A000227

£37,45 Unit Price incl. VAT

19

Fork for secondary shaft

2A000225

£36,12 Unit Price incl. VAT

20

Set screw

2A000416

Not Available

20

Set screw

2A000415

£12,83 Unit Price incl. VAT

21

Gasket 8.7x14.2x1.3

B063025

£4,70 Unit Price incl. VAT

22

Special nut

862560

£5,14 Unit Price incl. VAT

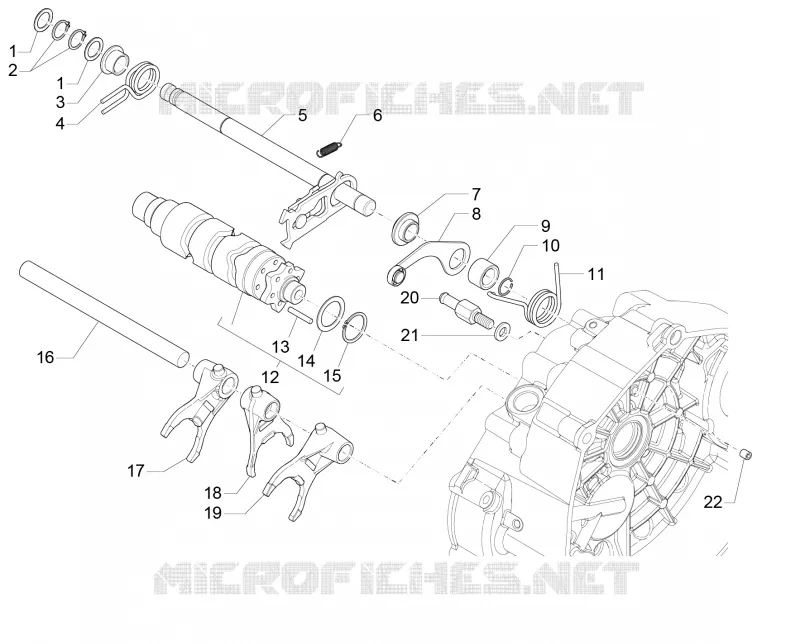

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
