Parts Catalog
Rear body I- Mudguard
6
Parts Diagram
Parts Catalog
Timing system cover
by
Rear wheel I
Rear body I- Mudguard
1
2
3
4
5
6
7
7
7
8
8
9
9
9
10
11
11
12
13
14
15
16
17
1
Rear mudguard, brushed finish
2S000237
£1 182,52 Unit Price incl. VAT
2
Front fastener bracket
2S000251
£25,75 Unit Price incl. VAT
3
Rear fastener bracket
2S000252
£25,90 Unit Price incl. VAT
4
M6 male/female rubber anti-vibration damper
AP8120459
£16,27 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
6
Hex socket screw
GU98230512
Not Available
7
Missing description
Not Available
8
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
9
Washer 12,5x6,4*
AP8150380
£0,14 Unit Price incl. VAT
10
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
11
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
12
Rubber
2S000255
£3,46 Unit Price incl. VAT
13
Stainless steel plate
2S000254
£11,63 Unit Price incl. VAT
14
Rear splash guard
2B001783
£14,81 Unit Price incl. VAT
15
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
16
Bush
AP8121032
£3,88 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT

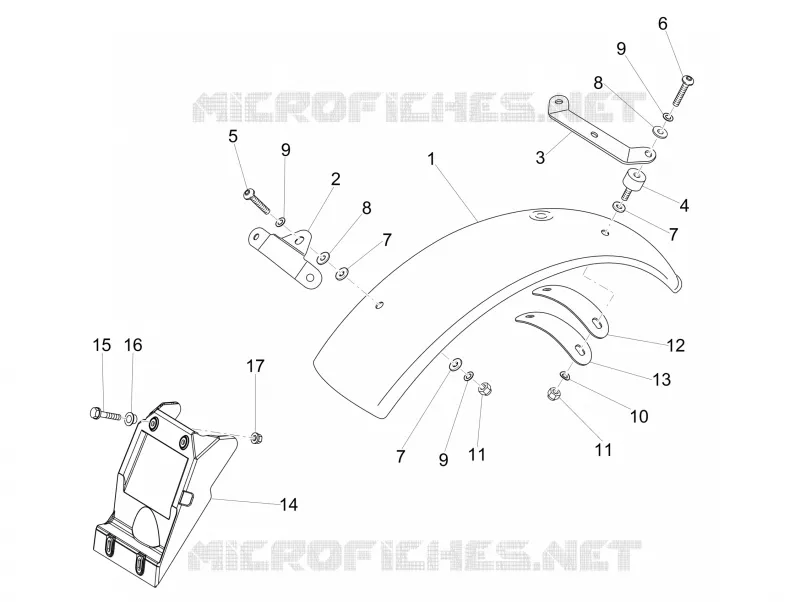

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
