Electrical system I for V7 II Special ABS from 2015

Free shipping for all orders to United Kingdom over £150! See conditions.

Electrical system I

1

Main wiring harness

2D000108

£335,39 Unit Price incl. VAT

2

Air temp. Sensor

AP8124936

£82,98 Unit Price incl. VAT

3

HT coil DX

642034

£57,73 Unit Price incl. VAT

4

HT coil

641901

£118,08 Unit Price incl. VAT

5

Self-locking nut M6

AP8152299

£1,88 Unit Price incl. VAT

6

H.V. cable

080341

Not Available

7

HV terminal

641725

Not Available

8

Insulating cap

641040

£7,73 Unit Price incl. VAT

9

Sheath D.8-S.0,5-L.370

CM0074D0

£4,51 Unit Price incl. VAT

10

Grey cable casing D.8-S.0,5-L.435

CM0074C9

£2,29 Unit Price incl. VAT

11

Sparkplug cap

2D000247

£42,97 Unit Price incl. VAT

11

Spark plug cap

2D000005

Not Available

11

Sparkplug cap

2D000205

Not Available

12

Spark plug NGK CPR8EB-9

887481

£18,19 Unit Price incl. VAT

13

Diode

887948

£73,03 Unit Price incl. VAT

14

Encoder sensor

832029

Not Available

15

Hex socket screw M5x12

GU98682212

£1,06 Unit Price incl. VAT

16

Washer 5,3x10x0,8

GU95008205

£1,26 Unit Price incl. VAT

17

O-ring

GU90706141

Not Available

18

Black hose 178x4

AP8120416

£1,00 Unit Price incl. VAT

19

Hose clamp 2,4x92

GU49609601

£0,90 Unit Price incl. VAT

20

Hose clamp 3,6x20,6

GU14609650

£1,02 Unit Price incl. VAT

21

HT wire L=470

2D000207

£20,69 Unit Price incl. VAT

22

HT wire L=580

2D000206

£20,69 Unit Price incl. VAT

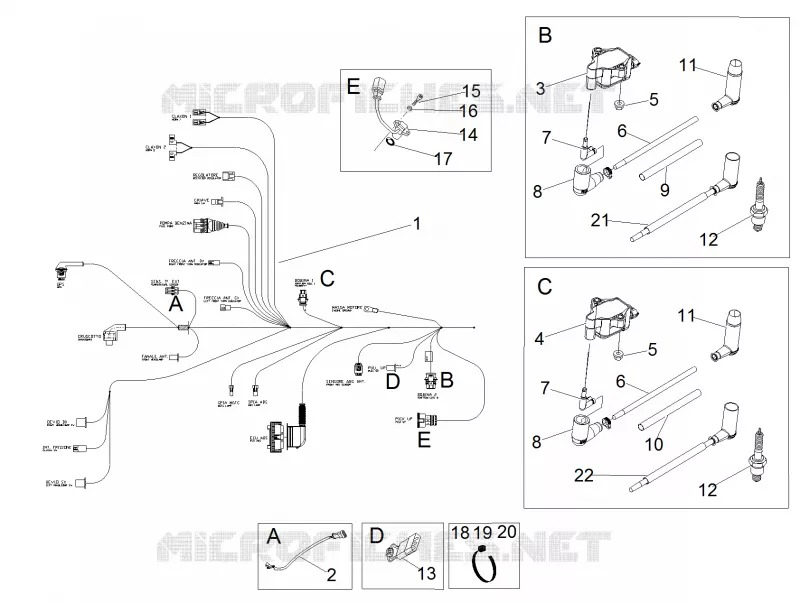

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
