Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Racer ABS
5
Parts Catalog
Front brake system
6

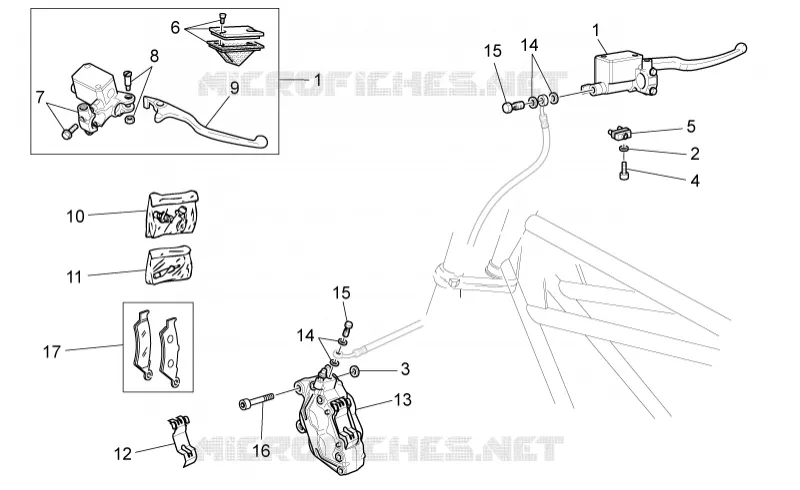

Parts Diagram
Parts Catalog
Front wheel
by
Decal and plate set
Front brake system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
1
Front master cilinder
2B001199
Not Available
2
Washer 4,3x8x1,5
GU95021104
£1,26 Unit Price incl. VAT
3
Spacer 10,25X20X4
GU91181003
£16,85 Unit Price incl. VAT
4
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
5
Stop switch
GU03749845
Not Available
6
Pump cover
2B001928
Not Available
7
Bracket
2B001929
£37,69 Unit Price incl. VAT
8
Lever pin cpl.
2B001927
Not Available
9
Brake lever
2B001926
£48,11 Unit Price incl. VAT
10
Bleeder+cap
GU05659230
£20,52 Unit Price incl. VAT
11
Pins+Caliper springs
GU01659130
£44,40 Unit Price incl. VAT
12
Spring
GU01659131
£46,15 Unit Price incl. VAT
13
Front disk brake caliper l.h.
2B001197
£438,08 Unit Price incl. VAT
14
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
15
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
16
Hex socket screw M10x1,25
AP8152385
£6,82 Unit Price incl. VAT
17
Pads pair
883673
£113,41 Unit Price incl. VAT
