1
Engine displacement
650
2
Model
V65
3
Year
1993
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Saddlebags-rear bumper
6
Parts Diagram
Parts Catalog
Saprisa battery - alternator
by
Fairing
Saddlebags-rear bumper
1
2
3
4
5
6
7
7
8
8
8
9
9
9
9
10
11
12
13
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
1
RH side case assy.,white/black
GU23482590003
Not Available
1
RH side case assy., white
GU23482590
Not Available
1
RH side case assy., white/blue
GU23482590004
Not Available
2
LH side case assy., white
GU23485790
Not Available
2
LH side case assy.,white/black
GU23485790003
Not Available
2
LH side case assy., white/blue
GU23485790004
Not Available
3
Cover gasket
GU28483946
Not Available
4
Pad
GU19705900
£4,74 Unit Price incl. VAT
5
RH support
GU28485045
Not Available
6
LH support
GU28486545
Not Available
7
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
8
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
9
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
10
Nut
GU92602206
£1,68 Unit Price incl. VAT
11
Rubber spacer
GU28584845
Not Available
12
Hex screw
GU98054420
£0,49 Unit Price incl. VAT
13
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
14
Nut
GU92602208
Not Available
15
Rubber spacer
GU93180706
£3,06 Unit Price incl. VAT
16
Notched washer
GU95021106
Not Available
17
Lock
GU28489945
£51,91 Unit Price incl. VAT
18
RH protection
GU19941095
Not Available
19
LH protection
GU19941495
Not Available
20
Hex socket screw
GU98620350
£1,58 Unit Price incl. VAT
21
screw
GU98620330
£0,49 Unit Price incl. VAT
22
Spacer
GU91180721
£5,05 Unit Price incl. VAT
23
Special washer
GU61013800
£1,26 Unit Price incl. VAT
24
Rubber spacer
GU18941750
£11,78 Unit Price incl. VAT
25
Front bumper assy
GU23450290
Not Available
26
Washer
GU95100245
Not Available

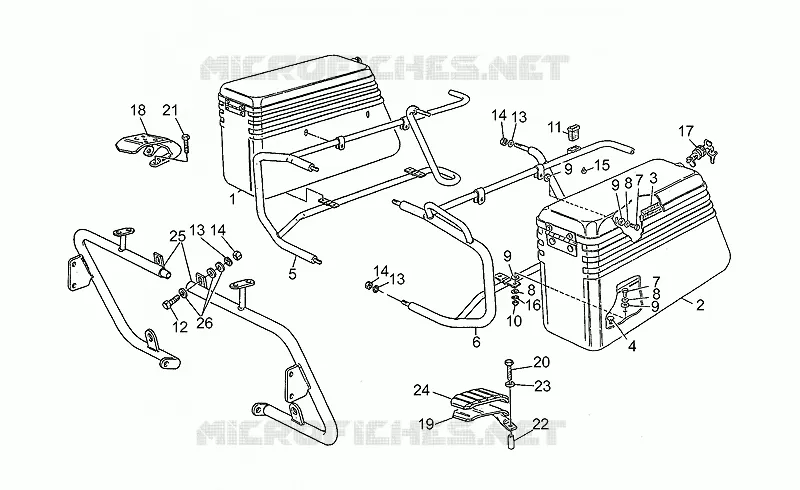

Find the detailed Saddlebags-rear bumper MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
