1
Engine displacement
650
2
Model
V65
3
Year
1983
4
Trim
V 65 Custom
5
Parts Catalog
Dashboard-controls
6
Parts Diagram
Parts Catalog
Rear bevel gear
by
Headlight
Dashboard-controls
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
44
45
48
49
50
51
4
Clutch lever control
GU19605501
Not Available
5
Clutch lever
GU14605770
Not Available
6
Throttle with hand grip
GU19603435
Not Available
7
4-way connector
GU17756160
Not Available
8
Cap
GU17756060
Not Available
9
RH hand grip
GU65603500
Not Available
10
LH hand grip
GU65603000
£27,26 Unit Price incl. VAT
11
Handlebar
GU29600351
£167,71 Unit Price incl. VAT
11
Handlebar
GU29600300
Not Available
12
Instrument support
GU19501500
£59,74 Unit Price incl. VAT
13
Rubber spacer
GU66502200
Not Available
14
Rubber spacer
GU66502201
Not Available
15
Washer
GU95090142
Not Available
16
Washer
GU18577850
£1,56 Unit Price incl. VAT
17
screw
GU98270641
Not Available
18
Speedometer
GU61761520
Not Available
19
Transmission
GU19760480
£64,04 Unit Price incl. VAT
20
Odometer gear
GU39762501
Not Available
21
Tachometer
GU17767260
£359,42 Unit Price incl. VAT
22
Gear Z=14
GU14769200
Not Available
23
Rev counter transmission
GU19768180
Not Available
24
Sheath
GU17762200
Not Available
25
Maintenance
GU65766970
Not Available
26
Lampholder
GU19768680
£8,40 Unit Price incl. VAT
27
Lamp
GU93450140
Not Available
28
screw
GU98830225
Not Available
29
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
30
Lampholder
GU14768650
Not Available
31
Lamp 12V-3W
GU93450120
Not Available
32
Horn
GU39738080
Not Available
33
Connector
GU61740551
Not Available
34
Rubber protection
GU35755780
Not Available
35
Throttle cable
GU19117595
£20,20 Unit Price incl. VAT
36
Operator's handbook
GU23900080
Not Available
36
Operator's handbook
GU23900081
Not Available
36
Operator's handbook
GU23900083
Not Available
36
Operator's handbook
GU23900082
Not Available
37
Toolkit
GU28929940
Not Available
38
O-ring
GU45212400
Not Available
39
Spacer
GU91180721
£5,05 Unit Price incl. VAT
40
Reset button
GU19762810
Not Available
41
plate
GU19501660
Not Available
44
Washer
GU95000206
£1,02 Unit Price incl. VAT
45
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
48
Transmission
GU23093080
£69,37 Unit Price incl. VAT
49
Gear 90°
GU17768360
£282,60 Unit Price incl. VAT
50
Cap
GU17093850
Not Available
51
Mirrors-pair
GU23999570
Not Available

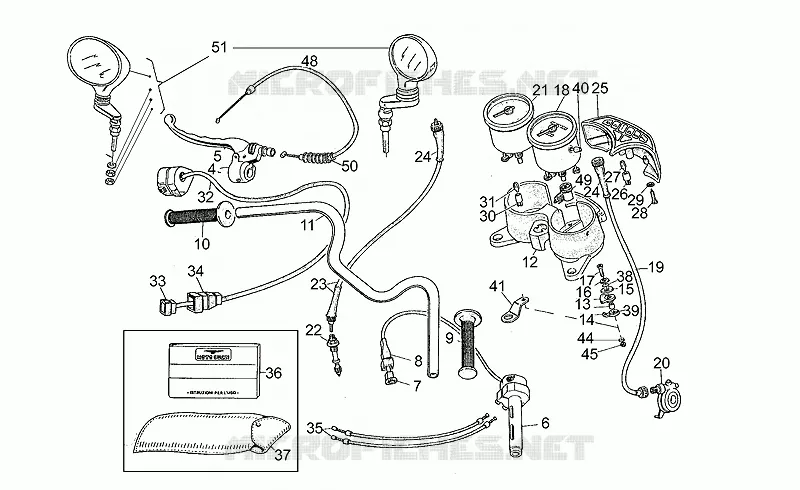

Find the detailed Dashboard-controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 65 Custom

Battery

Battery

for V 65 Custom from 1983

Body

Body

for V 65 Custom from 1983

Rear bevel gear

Rear bevel gear

for V 65 Custom from 1983

Dashboard-controls

Dashboard-controls

for V 65 Custom from 1983

Headlight

Headlight

for V 65 Custom from 1983

Swing arm-rear wh., alloy

Swing arm-rear wh., alloy

for V 65 Custom from 1983

Electrical system

Electrical system

for V 65 Custom from 1983

RH Front brake system

RH Front brake system

for V 65 Custom from 1983

Front LH/rear brake system

Front LH/rear brake system

for V 65 Custom from 1983

Windscreen-bumpers-bags

Windscreen-bumpers-bags

for V 65 Custom from 1983

Footrests-Stands

Footrests-Stands

for V 65 Custom from 1983

Wheels

Wheels

for V 65 Custom from 1983

Front shock absorber

Front shock absorber

for V 65 Custom from 1983

Front/rear shock absorber

Front/rear shock absorber

for V 65 Custom from 1983

Frame

Frame

for V 65 Custom from 1983

Drive shaft

Drive shaft

for V 65 Custom from 1983

Fuel supply-exhaust

Fuel supply-exhaust

for V 65 Custom from 1983

Gear box

Gear box

for V 65 Custom from 1983

Carburettors

Carburettors

for V 65 Custom from 1983

Crankcase

Crankcase

for V 65 Custom from 1983

Timing system

Timing system

for V 65 Custom from 1983

Clutch

Clutch

for V 65 Custom from 1983

Oil pump

Oil pump

for V 65 Custom from 1983

Transmission cage

Transmission cage

for V 65 Custom from 1983

Cylinder head

Cylinder head

for V 65 Custom from 1983

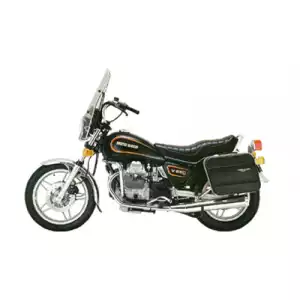

MOTO GUZZI LAVERDA SCARABEO V 65 Custom 1983
