1
Engine displacement
500
2
Model
V50
3
Year
2001
4
Trim
V 50 PA
5
Parts Catalog
crankcase covers
6
Parts Diagram
Parts Catalog
Carburettor
by
Timing system
crankcase covers
1
2
2
3
4
5
5
5
5
6
7
8
9
9
10
11
13
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
Crankcase, grey
GU31000380
Not Available
1
Crankcase, blank
GU19000120
Not Available
2
Vis sans tête
GU96451560
£11,22 Unit Price incl. VAT
3
Vis sans tête
GU96451430
£5,36 Unit Price incl. VAT
4
Vis sans tête
GU96508055
£9,60 Unit Price incl. VAT
5
Bague
GU19015020
£10,75 Unit Price incl. VAT
6
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
7
Nut
GU92602208
Not Available
8
Joint
GU19003800
£22,21 Unit Price incl. VAT
9
Bague 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
10
Cover
GU19016320
£10,19 Unit Price incl. VAT
11
Gasket ring
GU90401530
£7,26 Unit Price incl. VAT
13
Bague d'étanchéité
GU90405367
£35,53 Unit Price incl. VAT
13
Gasket ring
GU04000500
£13,18 Unit Price incl. VAT
14
Cover grey
GU31001480
Not Available
14
Timing system cover, blank
GU19001420
Not Available
15
Gasket
GU19001200
£4,96 Unit Price incl. VAT
16
Vis M6X25
GU98622325
£1,02 Unit Price incl. VAT
17
Caoutchouc
GU19007700
£4,44 Unit Price incl. VAT
18
Bague d'étanchéité 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
19
Oil sump grey
GU20003510
£270,06 Unit Price incl. VAT
19
Engine oil sump, blank
GU27003585
Not Available
20
Gasket
GU19003602
Not Available
21
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
22
Garniture
GU10528900
£4,45 Unit Price incl. VAT
23
Vis M6X35
GU98620335
£1,14 Unit Price incl. VAT
24
Cover
GU27001636
Not Available
25
Bride
GU27001136
£13,16 Unit Price incl. VAT
26
Cover, grey
GU20003410
Not Available
26
Cover, blank
GU19003400
Not Available
27
Joint torique
GU90706444
£1,39 Unit Price incl. VAT
28
Oil load plug
GU27004985
Not Available
29
Gasket ring
GU90706282
£0,65 Unit Price incl. VAT
30
Bouchon vid.huile
GU12003702
£12,94 Unit Price incl. VAT
30
Magnetic oil drain plug
GU30205200
Not Available
31
Joint
GU95100709
£5,29 Unit Price incl. VAT
32
Boulon
GU27152885
£10,73 Unit Price incl. VAT
33
Joint 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
34
Oil seals - set
GU19999580
Not Available
35
Engine gasket set
GU19999080
Not Available
36
Ecrou colonne
GU13021900
£15,36 Unit Price incl. VAT
37
screw
GU98620330
£0,49 Unit Price incl. VAT
38
Rondelle 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
39
Joint
GU10154200
£5,08 Unit Price incl. VAT
40
Cover
GU95980119
Not Available
41
Engine w/o gearbox DIGIPLEX
GU19991082
Not Available
41
Engine w/o gearbox MOTOPLAT
GU19991081
Not Available

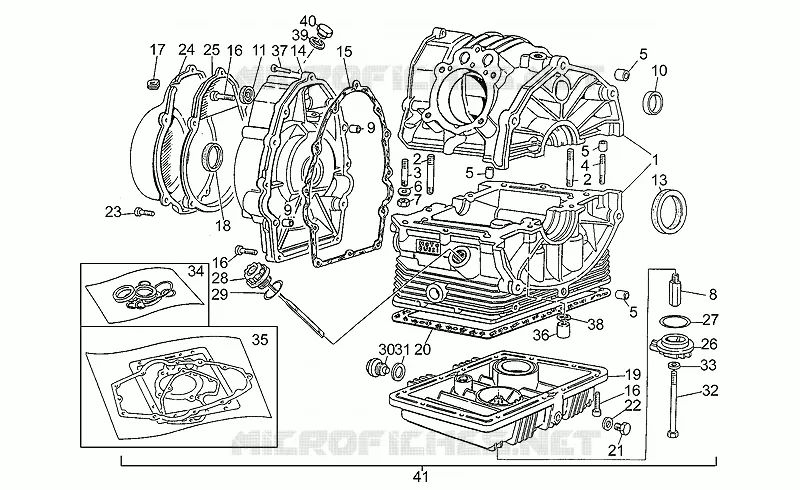

Find the detailed crankcase covers MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
