1
Engine displacement
500
2
Model
V50
3
Year
1992
4
Trim
V 50 PA
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Fuel supply
by
Sound strobo lamp
Exhaust unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
1
RH exhaust pipe
GU19120707
Not Available
2
LH exhaust pipe
GU19120706
Not Available
3
Exhaust pipe
GU19121135
Not Available
4
Hose clamp
GU61126920
Not Available
5
Joint
GU19025280
£3,54 Unit Price incl. VAT
6
Entretoise
GU19025460
£14,50 Unit Price incl. VAT
7
Exhaust ring nut
GU19121050
Not Available
8
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
9
Nut
GU92701062
Not Available
10
LH silencer
GU19122936
Not Available
11
RH silencer
GU19123036
Not Available
12
Collier
GU19123435
£65,94 Unit Price incl. VAT
13
RH plate
GU19128660
Not Available
14
PLAQUE
GU19128760
£33,74 Unit Price incl. VAT
15
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
16
Nut
GU92602208
Not Available
17
Hex screw
GU98054535
Not Available
18
Notched washer
GU95021110
Not Available
19
Ecrou
GU92602410
£0,96 Unit Price incl. VAT
20
screw
GU61127520
£0,77 Unit Price incl. VAT
21
Bague
GU61127220
£15,94 Unit Price incl. VAT

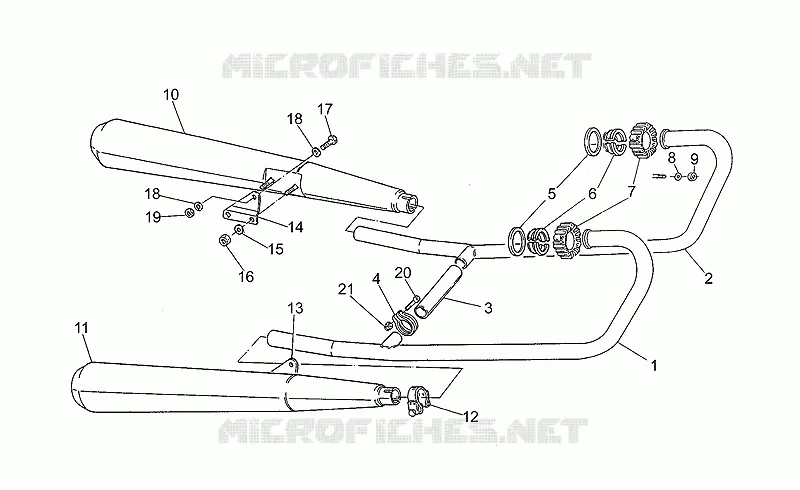

Find the detailed Exhaust unit MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
