Engine displacement
500
2
Model
V50
3
Year
1984
4
Trim
V 50 III
5
Parts Catalog
Bevel gear
6
Parts Diagram
Parts Catalog
Body
by
Electrical systems
Bevel gear
43
42
41
40
39
38
37
36
35
34
33
33
32
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Transmission box, blank
GU19350322
£270,53 Unit Price incl. VAT
2
Clearance washer
GU19351900
£10,06 Unit Price incl. VAT
3
Gasket ring 35x47x7
GU90403547
£10,73 Unit Price incl. VAT
4
Clearance washer
GU19351100
£2,22 Unit Price incl. VAT
5
Roller bearing 35x50x17
GU92252235
Not Available
6
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
7
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
8
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
9
Gasket
GU10528900
£4,45 Unit Price incl. VAT
10
Breather plug
GU19206501
£16,73 Unit Price incl. VAT
11
Gasket
GU10528900
£4,45 Unit Price incl. VAT
12
Stud bolt 8x46
GU96508045
£9,11 Unit Price incl. VAT
13
Cover
GU19350421
Not Available
14
Ball bearing 70x110x13
GU92201070
£129,37 Unit Price incl. VAT
15
Gasket ring 75x90x8
GU90407590
£16,36 Unit Price incl. VAT
16
Pin
GU19351401
£587,17 Unit Price incl. VAT
17
Stop ring
GU90353030
£1,58 Unit Price incl. VAT
18
Bevel gear Z=8/31
GU20354621
£751,70 Unit Price incl. VAT
19
screw
GU19356320
£2,10 Unit Price incl. VAT
20
plate
GU19356400
Not Available
21
Spacer 1,3 mm
GU19355410
£15,95 Unit Price incl. VAT
21
Spacer 1,1 mm
GU19355406
£16,00 Unit Price incl. VAT
21
Spacer 1,5 mm
GU19355412
£15,29 Unit Price incl. VAT
21
Spacer 0,8 mm
GU19355400
£16,14 Unit Price incl. VAT
21
Spacer 1 mm
GU19355404
£15,32 Unit Price incl. VAT
21
Spacer 1,2 mm
GU19355408
£15,29 Unit Price incl. VAT
21
Spacer 0,9 mm
GU19355402
£15,97 Unit Price incl. VAT
21
Spacer 1,4 mm
GU19355411
£15,29 Unit Price incl. VAT
21
Spacer 1,6 mm
GU19355413
£16,40 Unit Price incl. VAT
22
Gasket
GU19350700
£4,32 Unit Price incl. VAT
23
Thrust washer
GU19352300
£10,73 Unit Price incl. VAT
24
Thrust washer
GU19353500
£7,98 Unit Price incl. VAT
25
screw
GU98054425
Not Available
26
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
27
Plate
GU95187008
£4,94 Unit Price incl. VAT
28
Rear brake disc
GU19635736
£382,63 Unit Price incl. VAT
29
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
30
screw
GU98054418
Not Available
31
Bearing casing
GU19352401
£41,53 Unit Price incl. VAT
32
Tap.roller bearing
GU92249223
Not Available
32
Roller bearing 20x47x14
GU92249220
£106,96 Unit Price incl. VAT
33
Spacer 1,1 mm
GU19355301
£13,12 Unit Price incl. VAT
33
Spacer 1,1 mm
GU19355321
£16,32 Unit Price incl. VAT
33
Spacer 1,7 mm
GU19355327
£16,18 Unit Price incl. VAT
33
Spacer 1 mm
GU19355300
£13,21 Unit Price incl. VAT
33
Spacer 1,4 mm
GU19355304
£12,42 Unit Price incl. VAT
33
Spacer 1,6 mm
GU19355326
£15,95 Unit Price incl. VAT
33
Spacer 1,5 mm
GU19355305
£12,49 Unit Price incl. VAT
33
Spacer 1,3 mm
GU19355323
£14,56 Unit Price incl. VAT
33
Spacer 1,6 mm
GU19355306
£12,49 Unit Price incl. VAT
33
Spacer 1,8 mm
GU19355308
£1,33 Unit Price incl. VAT
33
Spacer 1,8 mm
GU19355328
£15,95 Unit Price incl. VAT
33
Spacer 1,4 mm
GU19355324
£15,95 Unit Price incl. VAT
33
Spacer 1,7 mm
GU19355307
£12,49 Unit Price incl. VAT
33
Spacer 1,3 mm
GU19355303
£12,67 Unit Price incl. VAT
33
Spacer 1 mm
GU19355320
£16,28 Unit Price incl. VAT
33
Spacer 1,9 mm
GU19355309
£12,48 Unit Price incl. VAT
33
Spacer 1,9 mm
GU19355329
£15,95 Unit Price incl. VAT
33
Spacer 1,2 mm
GU19355322
£16,28 Unit Price incl. VAT
33
Spacer 1,2 mm
GU19355302
£12,95 Unit Price incl. VAT
33
Spacer 1,5 mm
GU19355325
£16,32 Unit Price incl. VAT
34
Spacer
GU19355121
£11,15 Unit Price incl. VAT
34
Spacer
GU19355100
Not Available
35
Shim 0,1 mm
GU19355200
£2,04 Unit Price incl. VAT
36
Shim 0,15 mm
GU19355202
£3,65 Unit Price incl. VAT
37
Spacer
GU19356801
£30,61 Unit Price incl. VAT
38
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
39
Nut
GU19356700
£21,74 Unit Price incl. VAT
40
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT
41
Gasket ring
GU90403247
£12,61 Unit Price incl. VAT
42
Pin
GU19555200
Not Available
43
Nut
GU92602208
Not Available

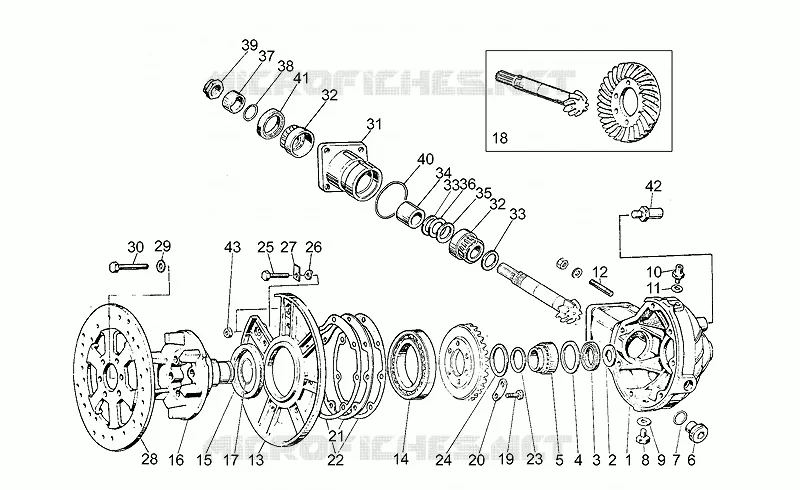

Find the detailed Bevel gear MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
