Parts Catalog
Wheels
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Front/rear shock absorber
Wheels
2
3
3
3
4
5
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
2
FRONT WHEEL
GU19610300
£1 096,06 Unit Price incl. VAT
3
Bearing
GU92204217
£60,25 Unit Price incl. VAT
4
Internal spacer
GU39615201
Not Available
5
Front brake disc
GU63635720
Not Available
6
screw
GU98052460
Not Available
7
Nut
GU92630508
£1,67 Unit Price incl. VAT
8
Spacer
GU91181803
Not Available
9
Front wheel spindle
GU19614100
Not Available
10
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
11
Nut M16X1,5
GU92602516
Not Available
12
Spacer
GU39616301
Not Available
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
15
Rear wheel
GU19630600
Not Available
16
LH rubber coupling
GU19632502
£13,22 Unit Price incl. VAT
17
Bearing
GU92204218
£73,26 Unit Price incl. VAT
18
Guard
GU19636400
Not Available
19
Bearing internal spacer
GU19634000
Not Available
20
Spacer
GU19634100
Not Available
21
Rear wheel spindle
GU19633300
Not Available
22
Washer
GU14634400
Not Available
23
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT

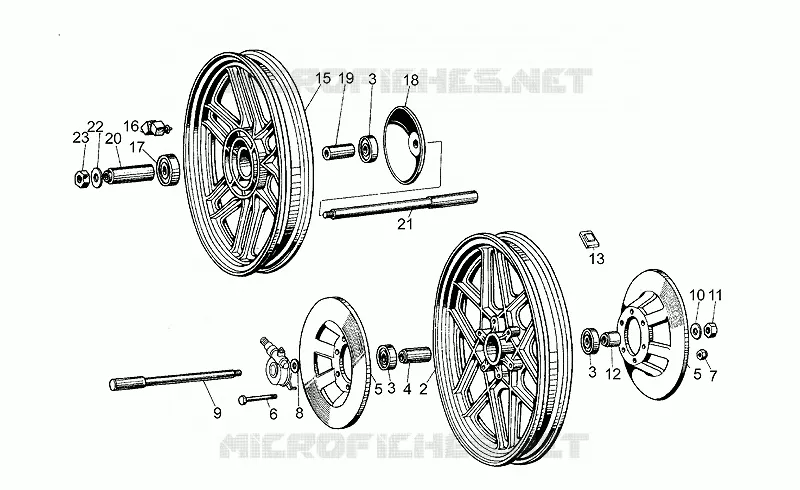

Find the detailed Wheels MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
