1
Engine displacement
350
2
Model
V35
3
Year
1977
4
Trim
V 35 Acc. Elettronica
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Drive shaft
by
Crankcase
Gear box
1
2
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
35
36
36
36
37
37
37
38
39
40
41
42
43
44
45
46
47
47
48
48
49
49
50
51
52
53
54
55
56
57
58
59
60
1
Primary gear shaft Z=11
GU19210501
Not Available
2
Gear conduttore 5a Z=22
GU19212000
Not Available
3
Washer
GU39215400
Not Available
4
Circlip
GU90271122
Not Available
5
Gear conduttore 5a Z=22
GU19211800
Not Available
6
Gear conduttore 3a Z=18
GU19211400
Not Available
7
Thrust washer
GU19214600
Not Available
8
Gear conduttore 2a Z=15
GU19211300
Not Available
9
Washer
GU43070940
Not Available
10
Ball bearing
GU92201415
Not Available
11
Clearance washer
GU39238100
£1,58 Unit Price incl. VAT
12
Nut
GU10054100
£12,77 Unit Price incl. VAT
13
Bearing 20X47X14
GU92201220
£39,08 Unit Price incl. VAT
14
Driven shaft
GU19213600
Not Available
15
Spacer
GU19212900
£17,84 Unit Price incl. VAT
16
Bearing 20X47X14
GU92201220
£39,08 Unit Price incl. VAT
17
Spacer
GU19213700
Not Available
18
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
19
Circlip
GU90271121
£1,39 Unit Price incl. VAT
20
Gear
GU19214501
£247,97 Unit Price incl. VAT
21
Gear condotto 3a Z=23
GU19214800
Not Available
22
Gear condotto 4a Z=23
GU19215100
Not Available
23
Gear condotto 5a Z=20
GU19215200
Not Available
24
Gear
GU19214001
Not Available
26
Washer
GU43070940
Not Available
27
Ball bearing
GU92201415
Not Available
28
Thrust washer
GU39239300
Not Available
29
Circlip
GU90271115
£1,22 Unit Price incl. VAT
30
Shift cam
GU19234400
Not Available
31
Pin
GU19234600
£10,20 Unit Price incl. VAT
32
Spacer 1 mm
GU19355300
£13,21 Unit Price incl. VAT
33
Snap ring
GU90271020
£0,85 Unit Price incl. VAT
34
Fork AP
GU39231270
Not Available
35
Fork AS
GU39231070
Not Available
36
Roller
GU19235220
Not Available
37
Split pin
GU95401320
Not Available
38
Pre-selector kit
GU20999520
Not Available
39
Spring
GU61238200
Not Available
39
Spring
GU28238261
Not Available
40
Spacer
GU20208520
£10,73 Unit Price incl. VAT
40
Bushing
GU91182010
£9,62 Unit Price incl. VAT
41
Shift lever
GU19258220
Not Available
42
screw
GU98052325
£0,56 Unit Price incl. VAT
43
Notched washer
GU95021106
Not Available
44
Gearbox pedal linkage rod
GU19257800
Not Available
45
Fork
GU12626800
£74,86 Unit Price incl. VAT
46
Nut
GU92602206
£1,68 Unit Price incl. VAT
47
Washer
GU95129110
Not Available
48
Washer 6,15x11x0,8
GU95004206
Not Available
49
Split pin
GU95500222
£1,26 Unit Price incl. VAT
50
Pin
GU95770265
Not Available
51
Lever
GU19256900
Not Available
52
screw
GU98052325
£0,56 Unit Price incl. VAT
53
Notched washer
GU95021106
Not Available
54
Complete gearchange lever
GU19250900
Not Available
55
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
56
Spring washer
GU95129260
£2,59 Unit Price incl. VAT
57
Gear rinvio AP Z=25
GU19211106
Not Available
57
Gear rinvio AP Z=23
GU19211151
Not Available
57
Gear rinvio AP Z=24
GU19211101
Not Available
58
Bushing
GU19266700
Not Available
59
Clearance washer
GU39238100
£1,58 Unit Price incl. VAT
60
Nut
GU10054100
£12,77 Unit Price incl. VAT

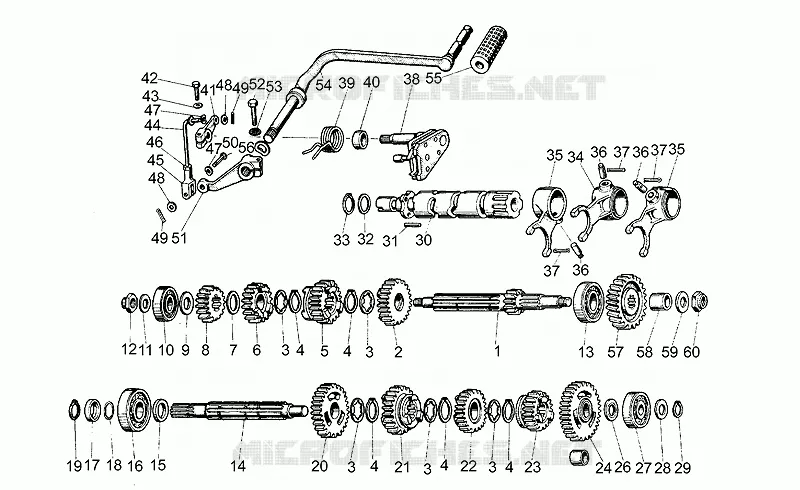

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
