Engine displacement
500
2
Model
V50
3
Year
1977
4
Trim
V 50 Acc. Elettronica
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Intake-exhaust
by
Gear box
Drive shaft
1
2
3
4
5
6
6
7
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Drive shaft
GU19064150
Not Available
1
Drive shaft
GU19064100
£1 098,53 Unit Price incl. VAT
2
Cover
GU19065400
£13,62 Unit Price incl. VAT
3
Connecting rod
GU19061500
Not Available
4
Connecting rod screw
GU61062201
Not Available
5
Nut
GU61062401
Not Available
6
Big end bushing
GU61062010001
Not Available
6
Big end bushing
GU61062012
Not Available
7
Crankshaft bearing
GU61065600
Not Available
7
C-case bushing insert drift
GU61065602
Not Available
8
C-case bushing insert drift
GU19066500
Not Available
9
Half ring
GU19066400
Not Available
10
Piston
GU19060400
£181,87 Unit Price incl. VAT
10
Piston
GU19060450
Not Available
11
Ring
GU19060750
£54,88 Unit Price incl. VAT
11
Piston ring
GU19060700
£83,65 Unit Price incl. VAT
12
Oil scraper ring
GU19061050
Not Available
12
Piston ring
GU19061000
Not Available
13
Piston pin
GU19061235
Not Available
13
Piston pin
GU19061250
Not Available
14
Ring
GU61061300
Not Available
15
Piston
GU19060400
£181,87 Unit Price incl. VAT
15
Piston
GU19060450
Not Available
16
Pistonring set
GU19060600
Not Available
16
Piston rings set
GU19060650
Not Available
17
Clutch drum
GU19080300
Not Available
18
screw
GU19067700
£2,51 Unit Price incl. VAT
19
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
20
Chain ring MOTOPLAT
GU19067900
Not Available
21
screw
GU98054318
£0,94 Unit Price incl. VAT
22
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
23
Transmission key
GU91701350
Not Available
24
Cam
GU19721000
Not Available
25
Rubber spacer
GU61066800
Not Available
26
Bushing
GU19061810
Not Available

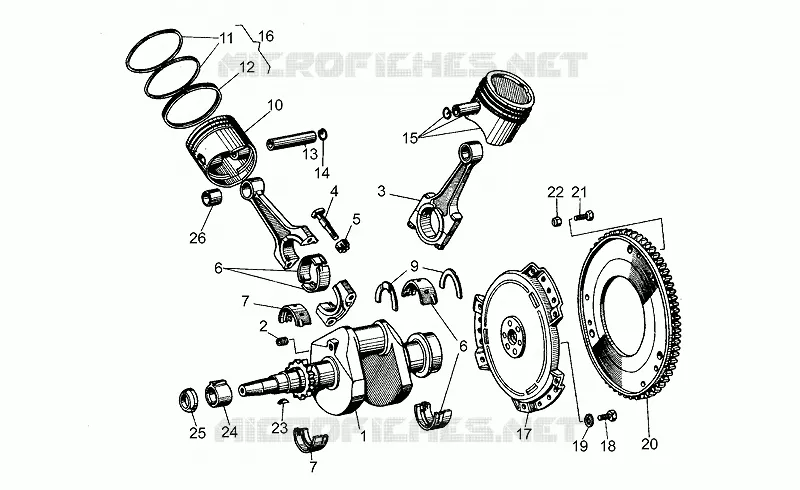

Find the detailed Drive shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
