1
Engine displacement
350
2
Model
V35
3
Year
1982
4
Trim
V 35 II
5
Parts Catalog
Wheels
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Front/rear shock absorber
Wheels
2
3
3
3
4
5
5
6
7
8
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
24
25
26
2
FRONT WHEEL
GU19610305
Not Available
3
Bearing
GU92204217
£60,25 Unit Price incl. VAT
4
Spacer
GU19615335
Not Available
5
Brake disc
GU31613380
Not Available
6
Hex screw
GU98052475
£2,96 Unit Price incl. VAT
7
Cap nut
GU92730082
Not Available
8
Washer
GU95004208
£0,70 Unit Price incl. VAT
9
Front wheel spindle
GU19614100
Not Available
10
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
11
Nut M16X1,5
GU92602516
Not Available
12
Spacer
GU61616330
Not Available
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
15
Rear wheel
GU19630600
Not Available
16
LH rubber coupling
GU19632502
£13,22 Unit Price incl. VAT
17
Bearing
GU92204218
£73,26 Unit Price incl. VAT
18
Guard
GU19636400
Not Available
19
Bearing internal spacer
GU19633935
Not Available
20
Spacer
GU19634100
Not Available
21
Rear wheel spindle
GU19633300
Not Available
22
Washer
GU14634400
Not Available
23
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT
24
RH rubber coupling
GU19632501
£15,76 Unit Price incl. VAT
25
Spacer
GU61615630
Not Available
26
Cover
GU62616800
£10,14 Unit Price incl. VAT

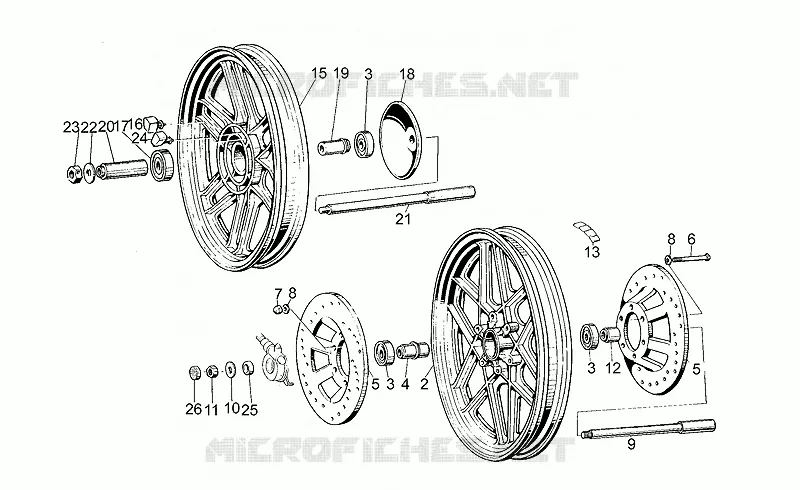

Find the detailed Wheels MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
