1
Engine displacement
350
2
Model
V35
3
Year
1986
4
Trim
V 35 Florida
5
Parts Catalog

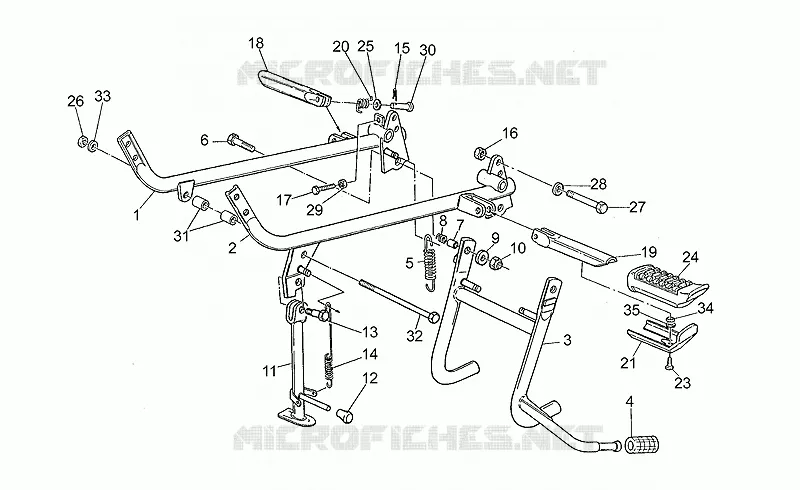

Foot rests - Lateral stand
6
Parts Diagram
Parts Catalog
Mudguards
by
Rear master cylinder
Foot rests - Lateral stand
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
1
RH craddle arm
GU23420310
Not Available
2
LH craddle arm
GU23422110
Not Available
3
Central stand
GU23430310
£84,91 Unit Price incl. VAT
4
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT
5
Lateral stand spring
GU12434001
Not Available
6
screw
GU98054530
£1,91 Unit Price incl. VAT
7
Spacer
GU91181114
£22,98 Unit Price incl. VAT
8
Spring
GU94322215
£10,33 Unit Price incl. VAT
9
Washer
GU95000210
Not Available
10
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
11
Lateral stand
GU23432011
Not Available
12
Lockup rubber
GU19433000
Not Available
13
Pin
GU99105129
Not Available
14
Spring
GU23434010
Not Available
15
Split pin
GU95401215
£1,33 Unit Price incl. VAT
16
Nut
GU92602210
Not Available
17
Hex screw
GU98054322
£0,40 Unit Price incl. VAT
18
RH front foot rest pipe
GU23440710
Not Available
19
LH front foot rest pipe
GU23441810
£84,12 Unit Price incl. VAT
20
Spring
GU03441130
£5,10 Unit Price incl. VAT
21
Plate
GU23441210
£17,46 Unit Price incl. VAT
23
screw
GU98054314
£0,49 Unit Price incl. VAT
24
Rubber pedal
GU23443210
£17,44 Unit Price incl. VAT
25
Washer
GU95000208
£5,23 Unit Price incl. VAT
26
Nut
GU92602210
Not Available
27
screw
GU98052565
£4,44 Unit Price incl. VAT
28
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
29
Nut
GU92602206
£1,68 Unit Price incl. VAT
30
Pin
GU23442210
£36,29 Unit Price incl. VAT
31
Bushing
GU19017000
£10,75 Unit Price incl. VAT
32
Pin M10x250
GU53429500
£35,46 Unit Price incl. VAT
33
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
34
Spacer
GU91180602
£10,21 Unit Price incl. VAT
35
Spring washer
GU95129130
£10,73 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
