1
Engine displacement
350
2
Model
V35
3
Year
1985
4
Trim
V 35 C - V 50 C
5
Parts Catalog
Wheels
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
Front/rear shock absorber
Wheels
2
3
3
3
4
5
5
6
7
8
8
9
10
11
13
13
15
16
17
18
19
20
21
22
23
24
25
27
27
2
2,15x18
GU23610380
Not Available
3
Bearing
GU92204217
£60,25 Unit Price incl. VAT
4
Spacer
GU19615335
Not Available
5
Brake disc
GU31613380
Not Available
6
screw
GU98052490
£2,94 Unit Price incl. VAT
7
Cap nut
GU92730082
Not Available
8
Washer
GU95000208
£5,23 Unit Price incl. VAT
9
Front wheel spindle
GU62614120
Not Available
9
Front wheel spindle
GU23614120
Not Available
10
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
11
Nut M16X1,5
GU92602516
Not Available
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
15
Rear wheel 2,50x16"
GU23630680
Not Available
16
LH rubber coupling
GU19632502
£13,22 Unit Price incl. VAT
17
Bearing
GU92204218
£73,26 Unit Price incl. VAT
18
Guard
GU19636400
Not Available
19
Bearing internal spacer
GU19633935
Not Available
20
Spacer
GU19634100
Not Available
21
Rear wheel spindle
GU23633380
£102,79 Unit Price incl. VAT
22
Washer
GU14634400
Not Available
23
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT
24
RH rubber coupling
GU19632501
£15,76 Unit Price incl. VAT
25
Spacer
GU23616320
Not Available
25
Spacer
GU62616320
Not Available
27
Flange
GU14611255
Not Available

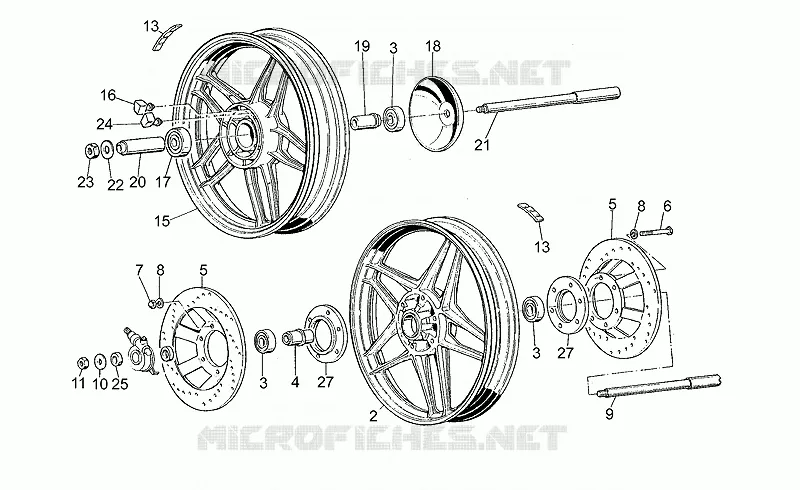

Find the detailed Wheels MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
