1
Engine displacement
350
2
Model
V35
3
Year
1996
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog
Battery - Motoplat ignition
6
Parts Diagram
Parts Catalog
by
Side cases
Battery - Motoplat ignition
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Battery
GU03704540
£107,08 Unit Price incl. VAT
1
Battery 12V-32Ah
GU14704505
Not Available
2
Float chamber
GU14707000
Not Available
3
Washer
GU95004205
£1,13 Unit Price incl. VAT
4
Bracket
GU19704800
£44,50 Unit Price incl. VAT
5
Cap
GU14717600
£3,04 Unit Price incl. VAT
6
Sparkplug cap NGK
GU30717410
Not Available
6
Sparkplug cap
GU14717400
Not Available
7
HT coil
GU31716560
£162,73 Unit Price incl. VAT
8
screw
GU98620240
Not Available
9
Spacer
GU91180721
£5,05 Unit Price incl. VAT
10
Spark plug NGK B8ES
GU31717060
Not Available
11
Bosch rectifier
GU17704300
Not Available
12
Cover
GU14704205
Not Available
13
Ground-battery lead
GU19748400
Not Available
14
screw
GU14712459
Not Available
15
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
16
Nut
GU92602205
£0,96 Unit Price incl. VAT
17
Bosch alternator
GU17712400
Not Available
18
Voltage regulator BOSCH
GU29703800
Not Available
19
Washer
GU95100060
Not Available
20
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
21
screw
GU98052245
Not Available
22
Cap
GU19707100
£12,65 Unit Price incl. VAT
23
Wire
GU19748000
Not Available
24
screw
GU98290512
Not Available
25
Washer
GU95000205
£0,96 Unit Price incl. VAT
26
Phase/revolution sensor
GU29722270
Not Available
27
Hex socket screw
GU98622318
£0,61 Unit Price incl. VAT
28
Hex socket screw M5x45
GU98620245
£0,91 Unit Price incl. VAT
29
Rotor
GU27721063
Not Available
30
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
31
Cap
GU23707100
Not Available
32
Support plate
GU29743602
Not Available
33
Spacer
GU91180605
£10,21 Unit Price incl. VAT
34
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
35
screw
GU98054214
Not Available
36
Spacer
GU91180627
Not Available
37
Generator SAPRISA
GU28712400
Not Available
38
Voltage regulator SAPRISA
GU28703800
Not Available
39
Connector SAPRISA
GU28712500
£10,27 Unit Price incl. VAT
40
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
41
screw
GU98620250
Not Available
42
screw
GU28712459
Not Available

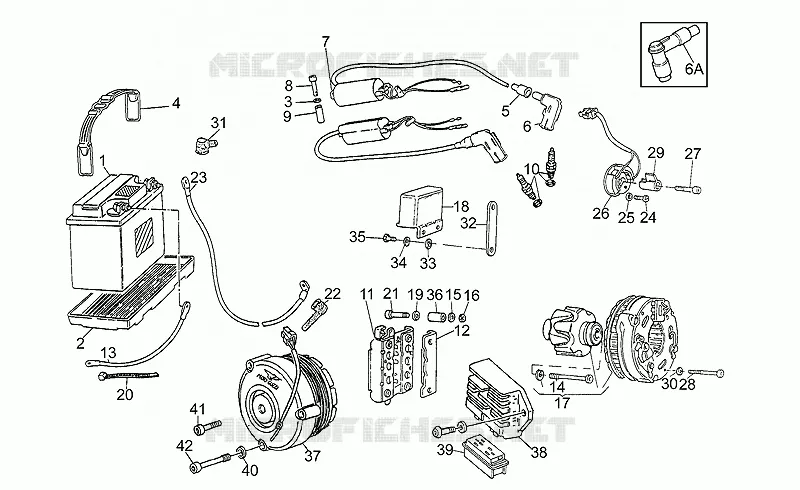

Find the detailed Battery - Motoplat ignition MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
