1
Engine displacement
350
2
Model
V35
3
Year
1998
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Front body - Front fairing
by
Bevel gear
Body
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
45
46
47
48
49
50
50
51
52
1
Fuel tank
GU19100215
Not Available
1
Fuel tank
GU23100290
Not Available
1
Fuel tank blank
GU191002051
£685,01 Unit Price incl. VAT
2
Tank cap
GU28103946
£62,90 Unit Price incl. VAT
3
Tank cover
GU19104015
Not Available
3
Tank cover, white
GU23104090
Not Available
3
Tank cover, blank
GU141040551
£76,14 Unit Price incl. VAT
4
Locks
GU14736856
Not Available
5
Tab
GU18105001
Not Available
6
Hose clamp
GU19104950
£1,76 Unit Price incl. VAT
7
Rubber spacer
GU19104336
£10,08 Unit Price incl. VAT
8
screw
GU98054210
£0,43 Unit Price incl. VAT
9
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
10
"Moto Guzzi" dataplate
GU28917300
Not Available
12
RH fuel cock
GU23105470
Not Available
13
LH fuel cock
GU23105370
£35,96 Unit Price incl. VAT
14
Tie rod
GU19102750
Not Available
15
RH side panel, white
GU23476290
Not Available
15
RH body panel blank
GU194762501
£100,62 Unit Price incl. VAT
15
RH side panel, blue
GU19476215
Not Available
16
LH body panel blank
GU194763501
Not Available
16
LH side panel, blue
GU19476315
Not Available
16
LH side panel, white
GU23476390
Not Available
17
Net panel (r)
GU19478150
£46,88 Unit Price incl. VAT
18
Net panel (l)
GU19478250
£46,88 Unit Price incl. VAT
19
Rubber spacer
GU19478550
£10,03 Unit Price incl. VAT
20
Rubber spacer
GU19478750
£6,89 Unit Price incl. VAT
21
"V35" finish
GU19922000
Not Available
22
Plate
GU39922200
£1,02 Unit Price incl. VAT
23
Saddle
GU23460590
Not Available
24
Tab
GU28460945
Not Available
25
Rear saddle hinge
GU28461345
Not Available
26
Front saddle hinge
GU28461300
Not Available
27
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
28
Washer 6,5X17X1.5
GU95100139
£1,20 Unit Price incl. VAT
29
Notched washer
GU95021106
Not Available
30
Rear fairing
GU19472616
Not Available
30
Rear fairing, white s.za decalco
GU23472690
Not Available
30
Rear fairing, blank
GU234726901
Not Available
31
"MotoGuzzi" dec.
GU28923400
Not Available
32
RH gasket
GU28439845
£2,03 Unit Price incl. VAT
33
LH gasket
GU28439846
£1,82 Unit Price incl. VAT
34
Rubber spacer
GU28479945
£7,80 Unit Price incl. VAT
35
Fixing pin
GU28472545
Not Available
36
screw
GU98280610
Not Available
37
Washer
GU95000206
£1,02 Unit Price incl. VAT
38
Pillion grab bar
GU28464401
Not Available
39
Washer
GU28478645
£0,92 Unit Price incl. VAT
40
Spacer
GU28471845
Not Available
41
Pin
GU28471945
Not Available
42
Pin
GU23466890
£18,12 Unit Price incl. VAT
43
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
45
Rubber pipe 12,5X7,8 5/16"
GU00823956080
£45,66 Unit Price incl. VAT
45
Fuel pipe
GU29106500
Not Available
46
Hose clamp
GU28108410
Not Available
47
Lock kit BOSCH
GU23736891
Not Available
48
Decal set, blue
GU23923390004
£303,18 Unit Price incl. VAT
48
Decal set, black
GU23923390003
£208,86 Unit Price incl. VAT
49
Fuel solenoid valve
GU37105305
Not Available
50
O-ring 20,24X2,62
GU90706220
Not Available
51
Fuel level sensor
GU31105481
Not Available
52
Adapter wiring
GU27738622
Not Available

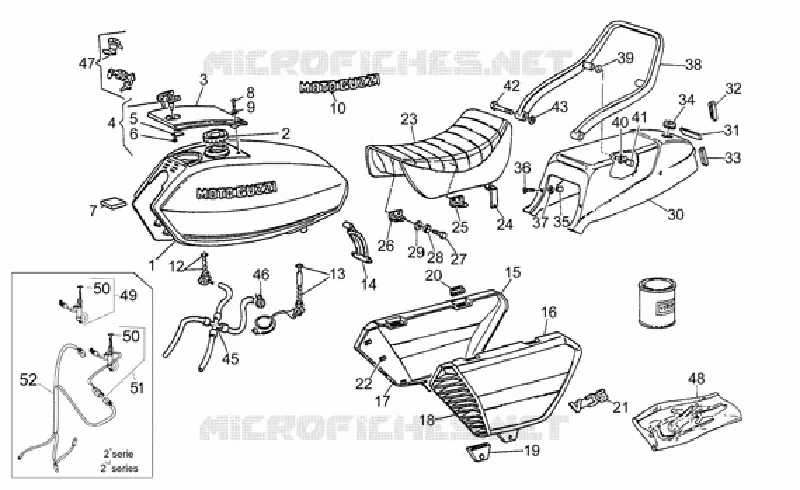

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
