1
Engine displacement
350
2
Model
V35
3
Year
1992
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog
RH Front brake system
6
Parts Diagram
Parts Catalog
Front/rear brake system
by
Rear master cylinder
RH Front brake system
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
2
Brake lever
GU27605615
Not Available
3
Bracket
GU27664075
Not Available
4
Cover
GU93180080
£1,98 Unit Price incl. VAT
5
Pin
GU27604815
£19,98 Unit Price incl. VAT
6
Cap
GU27663615
Not Available
7
Stop switch
GU27749815
Not Available
8
screw
GU98200214
Not Available
9
Ball
GU92295708
£0,70 Unit Price incl. VAT
10
Pump cover
GU27661115
Not Available
12
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
13
Flexible pipe
GU27657135
Not Available
14
Hose clamp
GU17658360
Not Available
15
Ring
GU17658260
£1,58 Unit Price incl. VAT
16
LH front brake caliper Grimeca
GU31652365
Not Available
17
Brake caliper cover BREMBO
GU39654700
Not Available
17
Brake caliper cover GRIMECA
GU31654765
Not Available
18
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
18
Pads pair GRIMECA
GU31654665
Not Available
19
Gasket
GU25656100
£1,57 Unit Price incl. VAT
20
screw
GU98622422
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
22
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
22
Washer 8,5X18X0,8
GU95100251
Not Available
23
Bleeder+cap GRIMECA
GU31659265
£12,54 Unit Price incl. VAT
23
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
24
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
24
Pins+spring GRIMECA
GU31659165
Not Available
25
Brake caliper rev. kit GRIMECA
GU66659031
Not Available
25
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
26
Nut
GU92601002
£1,02 Unit Price incl. VAT
27
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
28
Cable-guide
GU23655770
Not Available
29
Front master cilinder
GU27660115
£275,94 Unit Price incl. VAT
30
Cap
GU39663801
£10,33 Unit Price incl. VAT

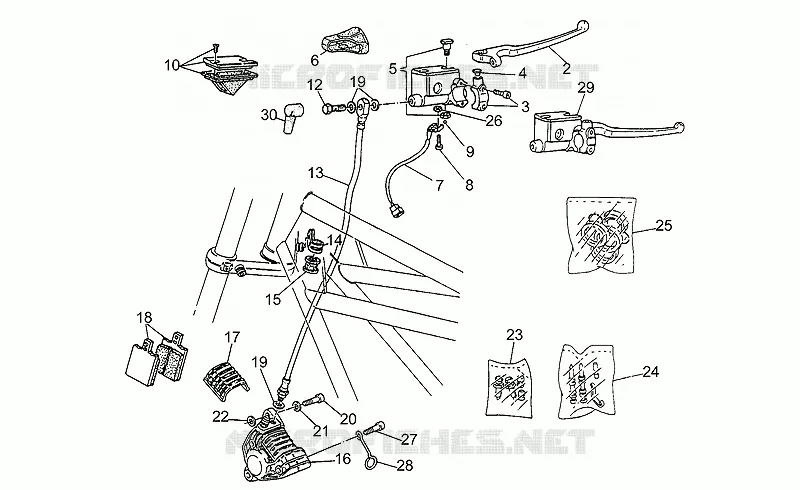

Find the detailed RH Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
