Transmission cage for MOTO GUZZI LAVERDA SCARABEO V 35 Carabinieri/PA from 1991

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Box cover

GU19200821

Not Available

2

Roulement 15x35x11

GU92204215

£38,80 Unit Price incl. VAT

3

Gasket ring 28x40x7

GU90402841

£3,04 Unit Price incl. VAT

4

Joint torique 13,95x2,92

GU90706140

£1,25 Unit Price incl. VAT

5

plate

GU19213820

Not Available

6

screw

GU98622314

£0,67 Unit Price incl. VAT

7

Washer 6,4x10x0,7

GU14217901

Not Available

8

PLAQUE

GU19235800

£21,23 Unit Price incl. VAT

9

screw

GU98622314

£0,67 Unit Price incl. VAT

10

Gasket

GU23200370

£6,84 Unit Price incl. VAT

11

Capteur POINT MORT

GU19207220

£88,42 Unit Price incl. VAT

12

Joint 8,25x15x1

GU12154200

£2,45 Unit Price incl. VAT

13

Vis M12x1,25

GU19237800

£20,20 Unit Price incl. VAT

14

Low nut M12x1,25

GU92602512

£1,57 Unit Price incl. VAT

15

Gasket

GU19201120

£5,68 Unit Price incl. VAT

16

Bague 6,6x9x13

GU19002020

£8,24 Unit Price incl. VAT

17

Transmission cage

GU19200222

Not Available

18

screw

GU98620330

£0,49 Unit Price incl. VAT

19

screw

GU98620435

Not Available

20

Encliquetage

GU55234700

£82,48 Unit Price incl. VAT

21

Retour levier démarrage

GU94321067

£1,86 Unit Price incl. VAT

22

Bouchon purge

GU19206501

£16,73 Unit Price incl. VAT

23

Garniture

GU10528900

£4,45 Unit Price incl. VAT

24

Bouchon huile

GU12022600

£36,13 Unit Price incl. VAT

25

Joint torique 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

26

Oil level plug

GU95980214

£12,80 Unit Price incl. VAT

27

Oil bulhead

GU19208220

Not Available

28

Ball bearing 20x42x12

GU92201120

£32,68 Unit Price incl. VAT

29

Bague 10,25x15,7x8

GU19202320

£10,75 Unit Price incl. VAT

30

Transmission assy and housing

GU27991535

Not Available

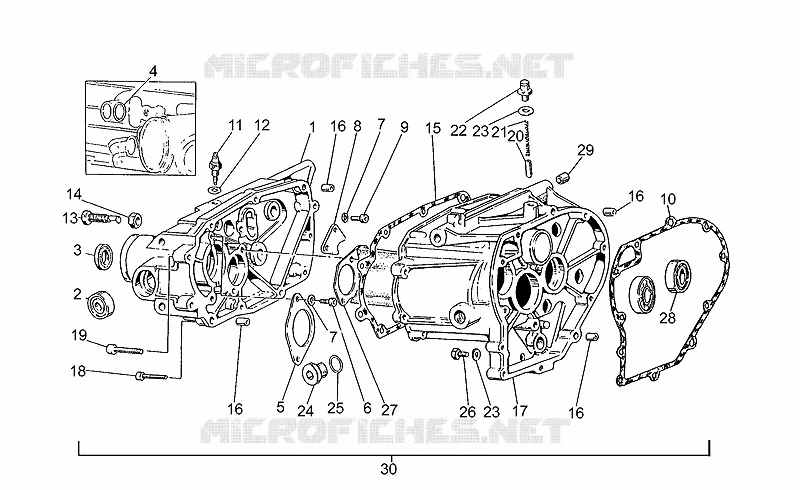

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
