1
Engine displacement
1100
2
Model
V11
3
Year
1999
4
Trim
V 11 Sport - Mandello
5
Parts Catalog
Starter motor
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Gear lever
Starter motor
1
2
3
4
9
9
9
9
9
10
11
12
13
14
15
15
16
17
1
Starter motor Valeo
GU30730711
£557,15 Unit Price incl. VAT
2
Hex screw
GU98052475
£2,96 Unit Price incl. VAT
3
Pinion assy
GU30530510
£79,61 Unit Price incl. VAT
4
Brush revision set
GU30530511
Not Available
9
Starter motor revision kit
GU30530512
Not Available
10
Washer
GU95004208
£0,70 Unit Price incl. VAT
11
Carb. starter cover
GU01733340
Not Available
11
Starter cover, silver
GU01733333
Not Available
11
Starting motor cover blank
GU01733330
Not Available
11
Starter cover, green
GU01733332
Not Available
11
Starter cover, black
GU01733334
Not Available
12
Rubber spacer
GU91551085
Not Available
13
Spacer
GU91180607
Not Available
14
Plate
GU01733830
£23,06 Unit Price incl. VAT
15
Clamp
GU12548401
£15,95 Unit Price incl. VAT
16
Cap nut
GU92781053
£13,38 Unit Price incl. VAT
17
Washer
GU95100062
£1,26 Unit Price incl. VAT

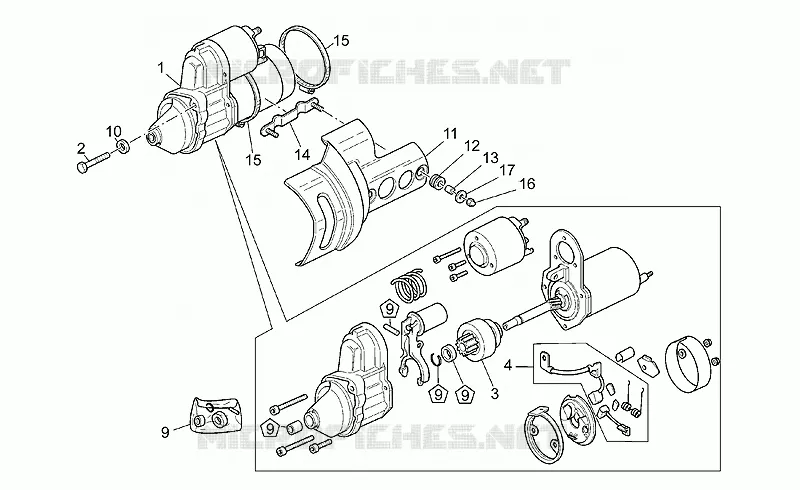

Find the detailed Starter motor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
