Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Front brake system
Rear wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Rear wheel, grey 5,5x17"
GU01630630
Not Available
2
Air valve
GU28617760
£13,82 Unit Price incl. VAT
3
Hub
GU01632200
Not Available
4
Roulement à billes 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
5
Bague seeger
GU90271055
£7,60 Unit Price incl. VAT
6
Entretoise roulements
GU01634000
£53,68 Unit Price incl. VAT
7
Disque frein AR or
GU03635700
£415,16 Unit Price incl. VAT
8
Vis
GU30611460
£4,01 Unit Price incl. VAT
9
Primary drive / Cush drive
GU01336800
£14,40 Unit Price incl. VAT
10
O-ring
GU90706490
£1,61 Unit Price incl. VAT
11
Disque piece en caoutchouc
GU01335230
£271,12 Unit Price incl. VAT
12
Ring
GU14335350
Not Available
13
Bride
GU14335650
£64,54 Unit Price incl. VAT
14
Vis
GU98230620
£2,04 Unit Price incl. VAT
15
Rondelle
GU03013800
£1,98 Unit Price incl. VAT
16
Axe de roue AR
GU01633330
£24,72 Unit Price incl. VAT
17
Nut
GU92630118
Not Available
18
Entretoise
GU01634130
£10,08 Unit Price incl. VAT
19
Rondelle
GU95008219
£1,02 Unit Price incl. VAT
20
Bouchon 15 mm
GU93180111
£2,63 Unit Price incl. VAT
21
Contrepoids
GU14616150
£18,94 Unit Price incl. VAT

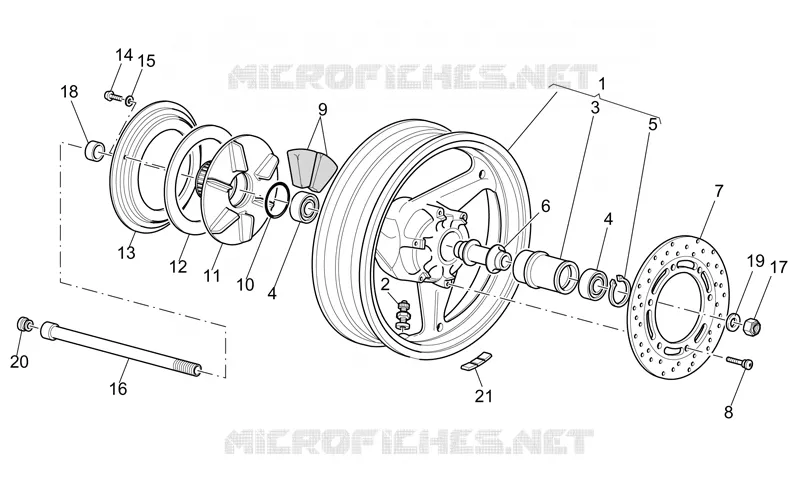

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
