Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Swing arm and rear shock absorber
by
Rear wheel
Front wheel
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
1
Front wheel, grey 3,5x17"
GU01610340
£190,37 Unit Price incl. VAT
2
Ball bearing 25x52x15
GU92205227
£31,73 Unit Price incl. VAT
3
Bearing internal spacer
GU01615300
Not Available
3
Spacer
GU01615290
Not Available
4
Front brake disc
GU01613330
£389,60 Unit Price incl. VAT
5
Screw w/ flange M8x20
GU03611445
Not Available
6
Front wheel spindle
GU01614190
£156,64 Unit Price incl. VAT
6
Front wheel spindle
GU01614185
£85,86 Unit Price incl. VAT
6
Front wheel spindle
GU01614180
£21,92 Unit Price incl. VAT
7
Spacer
GU01616380
£25,91 Unit Price incl. VAT
7
Spacer
GU01616300
£53,71 Unit Price incl. VAT
7
Spacer
GU01616390
£12,61 Unit Price incl. VAT
8
Air valve
GU28617760
£13,82 Unit Price incl. VAT
9
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
10
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
11
Nut
GU01612190
£10,82 Unit Price incl. VAT
12
Bearing 20x52x15
GU92201821
£35,15 Unit Price incl. VAT
13
Cover 15 mm
GU93180111
£2,63 Unit Price incl. VAT

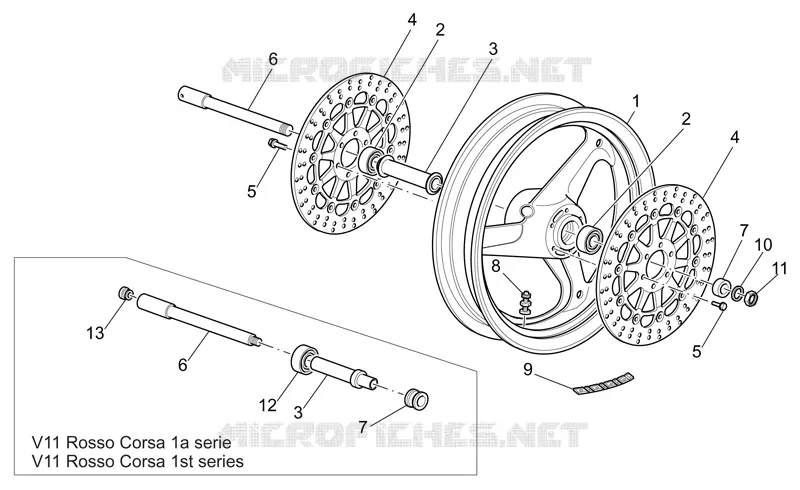

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
