Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Rear brake system
6
Parts Diagram
Parts Catalog
Front brake system
by
Clutch control complete
Rear brake system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Rear brake lever
GU01677060
Not Available
2
Bague
GU37678105
£16,15 Unit Price incl. VAT
3
Caoutchouc
GU14251001
£3,65 Unit Price incl. VAT
4
Vis M6X16
GU98370616
£2,48 Unit Price incl. VAT
5
Pivot
GU37676605
£101,28 Unit Price incl. VAT
6
Rondelle
GU95100342
£10,08 Unit Price incl. VAT
7
Excentrique
GU01677630
£15,65 Unit Price incl. VAT
8
Vis TCEI M6x25
GU98682325
£1,26 Unit Price incl. VAT
9
Ball joint
GU30675300
Not Available
10
Nut
GU92606206
£1,02 Unit Price incl. VAT
11
Poussoir cde mai-cyl.
GU01675200
£59,87 Unit Price incl. VAT
12
Vis M6x20
GU98682320
£1,26 Unit Price incl. VAT
13
Ecrou M6X1
GU92630707
£2,04 Unit Price incl. VAT
14
Rear master cylinder
GU30666900
Not Available
15
Protection collar
GU30530525
Not Available
16
Gr.révision raccordde pomp
GU19659500
£22,94 Unit Price incl. VAT
17
Pump protection plate
GU30665400
Not Available
18
Hex socket screw M6x20
GU98350320
£0,23 Unit Price incl. VAT
19
Washer 6,4x10x0,7
GU14217901
Not Available
20
Tuyau frein gris sombre
GU01657531
£101,90 Unit Price incl. VAT
21
Garniture
GU25656100
£1,57 Unit Price incl. VAT
22
Stop switch
GU14657050
£48,26 Unit Price incl. VAT
23
Joint torique 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
24
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
25
Rondelle 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
26
Collier L36 mm
GU03609600
£1,94 Unit Price incl. VAT
27
TUYAU DU FREIN
GU00823950050
£26,57 Unit Price incl. VAT
28
Hose clamp
GU19157800
Not Available
29
Brake oil tank complete
GU30663500
Not Available
30
Couvercle réservoir
GU30661101
£23,53 Unit Price incl. VAT
31
Vis M6x16
GU98682316
£1,26 Unit Price incl. VAT
32
Bracket matte black
GU01635840
Not Available
33
Bloc
GU37636105
£67,36 Unit Price incl. VAT
34
Special screw
GU01638630
£45,71 Unit Price incl. VAT
35
Rear brake caliper, gold
GU30653001
Not Available
36
Vis M8x30
GU98682430
£0,70 Unit Price incl. VAT
37
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
38
Bleeder+cap BREMBO D.10
GU31659260
£16,82 Unit Price incl. VAT
39
Goujon+ressort pince
GU30659101
£24,59 Unit Price incl. VAT
40
Plaquettes-paire
GU27654610
£16,44 Unit Price incl. VAT
41
Couvercle pince frein
GU30654700
£19,94 Unit Price incl. VAT
42
Split pin
GU02466900
£7,06 Unit Price incl. VAT

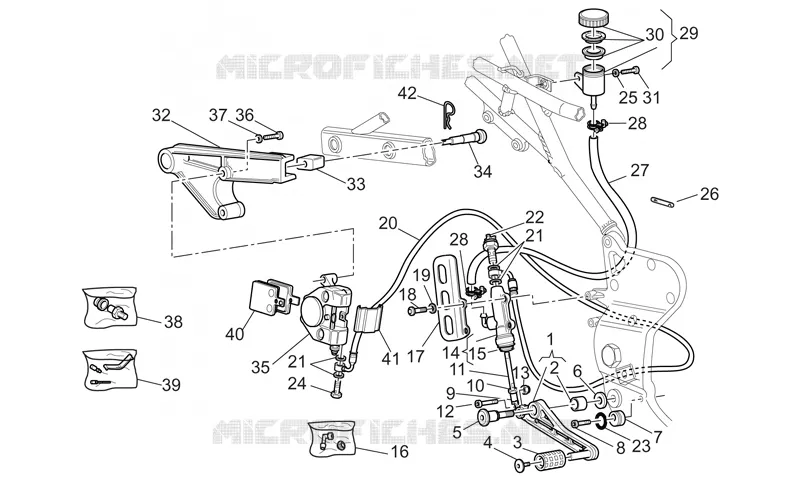

Find the detailed Rear brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
