Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Primary gear shaft
6
Parts Diagram
Parts Catalog
Gear box selector
by
Driven shaft
Primary gear shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Primary gear shaft assy.
GU04210500
Not Available
2
Demi-clavettes
GU12211700
£11,64 Unit Price incl. VAT
3
Engrenage 2a vel.Z=18
GU04211300
£41,53 Unit Price incl. VAT
4
Engrenage 3a vel.Z=22
GU04211400
£48,46 Unit Price incl. VAT
5
Joint torique
GU90706233
£1,20 Unit Price incl. VAT
6
Clutch gear
GU04211600
£216,97 Unit Price incl. VAT
7
Rondelle
GU04212900
£2,51 Unit Price incl. VAT
8
Rondelle de séreté
GU95028025
£10,73 Unit Price incl. VAT
9
Bague
GU93601026
£32,50 Unit Price incl. VAT
10
Rondelle
GU95004221
£2,52 Unit Price incl. VAT
11
Safety washer
GU95028020
£4,49 Unit Price incl. VAT
12
Bague
GU93601020
£23,16 Unit Price incl. VAT
13
Drive shaft
GU04218700
£255,37 Unit Price incl. VAT
14
Ball bearing 35X62X9
GU92201035
Not Available
15
Hose
GU04218900
£295,12 Unit Price incl. VAT
16
Kit manchon piece encaoutchouc
GU04211201001
£26,53 Unit Price incl. VAT
17
Engrenage Z=32
GU01215630
£73,84 Unit Price incl. VAT
18
Ressort à godet
GU04211500
£15,19 Unit Price incl. VAT

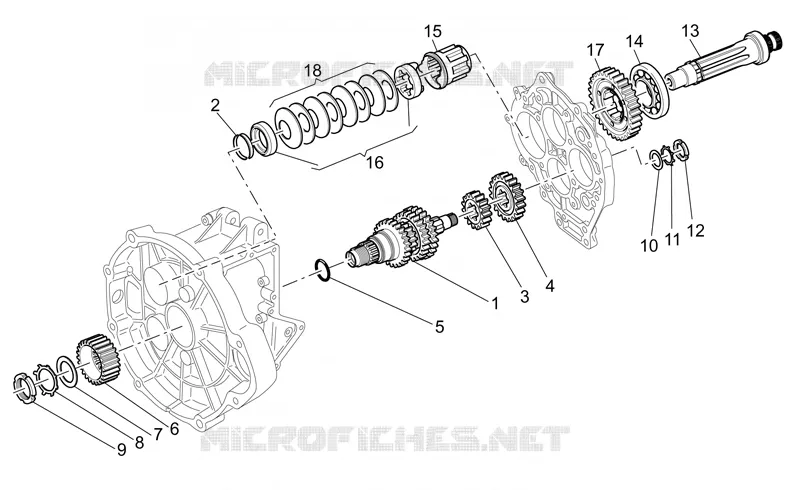

Find the detailed Primary gear shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
