1
Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Lateral stand - Foot rests
6
Parts Diagram
Parts Catalog
Frame
by
Fuel tank
Lateral stand - Foot rests
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Lateral stand
GU01432190
£131,50 Unit Price incl. VAT
2
plate
GU01433460
Not Available
3
Vis
GU30432801
£40,46 Unit Price incl. VAT
4
Special washer
GU95021114
Not Available
5
Vis
GU01433201
£38,17 Unit Price incl. VAT
6
Plaquette
GU01432730
£15,37 Unit Price incl. VAT
7
Ressort externe
GU30434001
£24,11 Unit Price incl. VAT
8
Washer
GU95100120
Not Available
9
Ressort interne
GU30434000
£17,05 Unit Price incl. VAT
10
Plaquette
GU01433600
£20,48 Unit Price incl. VAT
11
Tampon
GU93242007
£17,77 Unit Price incl. VAT
12
Support
GU30442705
£37,67 Unit Price incl. VAT
13
Vis
GU98251040
£7,50 Unit Price incl. VAT
14
Ecrou
GU92640510
£2,33 Unit Price incl. VAT
15
RH Foot rests
GU30440705
Not Available
16
LH Foot rests
GU30441805
Not Available
17
Pin
GU30441005
Not Available
18
Return spring
GU30441105
Not Available
19
Pivot
GU30442205
£25,78 Unit Price incl. VAT
20
Stop ring
GU90280006
£0,58 Unit Price incl. VAT
21
Bride droite noir mat
GU01444640
£207,67 Unit Price incl. VAT
22
Bride gauche noir mat
GU01444740
£207,67 Unit Price incl. VAT
23
Rep-pieds pass.dte
GU30442405
£89,47 Unit Price incl. VAT
24
Rep-p.pass.gche
GU30442805
£89,47 Unit Price incl. VAT
25
Plaque fdc r-pied
GU30443105
£4,32 Unit Price incl. VAT
26
Ressort
GU94321062
£2,45 Unit Price incl. VAT
27
Bille
GU92295706
£0,92 Unit Price incl. VAT
28
Plaquette
GU30441605
£3,41 Unit Price incl. VAT
29
Ecrou
GU92630310
£1,50 Unit Price incl. VAT
30
Flanged nut M6
GU92650036
£1,02 Unit Price incl. VAT
31
Levier
GU01431930
£33,71 Unit Price incl. VAT
32
Vis M6X18
GU98350318
£0,96 Unit Price incl. VAT
33
Washer 6,4x10x0,7
GU14217901
Not Available
34
Vis
GU97040220
£1,18 Unit Price incl. VAT
35
Nut
GU92606205
£1,02 Unit Price incl. VAT
36
Plaquette
GU01433860
£31,69 Unit Price incl. VAT
37
Switch
GU01759130
£47,34 Unit Price incl. VAT
38
Ecrou m8x1
GU92606508
£1,26 Unit Price incl. VAT
39
Bride
GU01431830
£2,39 Unit Price incl. VAT
40
screw
GU98682418
£2,14 Unit Price incl. VAT
41
Washer
GU95005311
£0,68 Unit Price incl. VAT
42
screw
GU98882425
Not Available
43
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

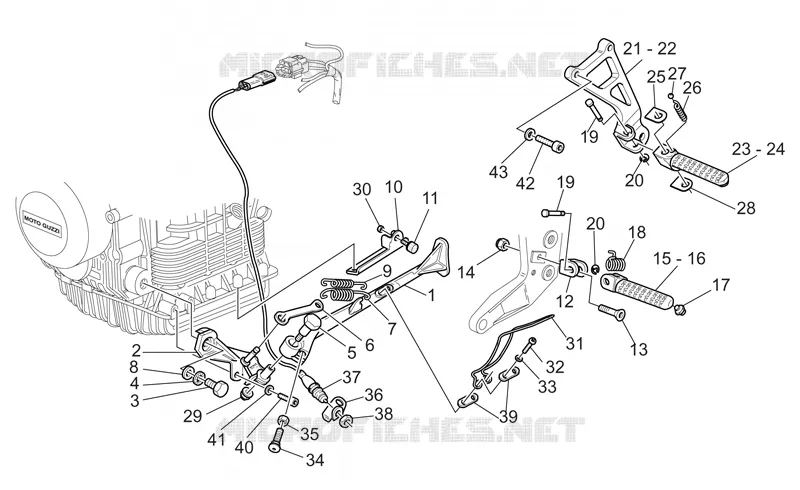

Find the detailed Lateral stand - Foot rests MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
