Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Lateral stand - Foot rests
by
Fuel vapour recover system
Fuel tank
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Fuel tank red
GU89000498
Not Available
1
Réservoir gris chrome
GU89000493
£994,73 Unit Price incl. VAT
1
Fuel tank blank
GU01100290
Not Available
1
Réservoir rouge
GU89000494
£940,27 Unit Price incl. VAT
1
Reservoir noir
GU89000535
£940,27 Unit Price incl. VAT
2
Transfer centre black
GU01917590
Not Available
2
Décalcomanie central noir
GU01917591
£79,28 Unit Price incl. VAT
3
RH Sticker "Moto Guzzi"
GU01917890
£10,57 Unit Price incl. VAT
4
LH sticker "Moto Guzzi"
GU01917990
Not Available
5
Tank cap
GU01103990
Not Available
5
Tank cap
GU01103960
£176,22 Unit Price incl. VAT
6
Vis M5x30
GU98690230
£4,98 Unit Price incl. VAT
7
Vis
GU98622216
£0,91 Unit Price incl. VAT
8
Gasket
GU01101700
Not Available
9
Caoutchouc
GU66103415
£16,24 Unit Price incl. VAT
10
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
11
screw
GU98622420
Not Available
12
Vis
GU98082445
£1,58 Unit Price incl. VAT
13
Rondelle
GU95100239
£2,04 Unit Price incl. VAT
14
Caoutchouc
GU02107100
£13,93 Unit Price incl. VAT
15
Entretoise
GU91180831
£4,45 Unit Price incl. VAT
16
Ecrou collier M8x1,25
GU01576530
£12,77 Unit Price incl. VAT
17
Lock kit
GU01736890
Not Available
17
Lock kit
GU01736891
£473,87 Unit Price incl. VAT
18
TUYAU DE VIDANGE
GU00823944050
£18,78 Unit Price incl. VAT
19
Joint
GU30103730
£11,33 Unit Price incl. VAT
20
Joint
GU30104630
£1,28 Unit Price incl. VAT
21
Clé pas cantée brut
GU30735500
£10,22 Unit Price incl. VAT
22
Decal set
GU01923391
Not Available
22
Decal set
GU01923390
Not Available
23
Caoutchouc anti-vibrations
GU01103860
£8,16 Unit Price incl. VAT
24
"Décalco ""Attention"""
GU30944300
£13,50 Unit Price incl. VAT
25
Tank decal set
GU01948093
Not Available
26
Decal set
GU01923366
Not Available
26
Decal set
GU01923367
Not Available
27
Tank decal set
GU01948092
£182,04 Unit Price incl. VAT
28
RH stic."Moto Guzzi" red/gold
GU03917810
Not Available
29
"Déc.""Moto Guzzi"" rouge/or"
GU03917910
£26,03 Unit Price incl. VAT

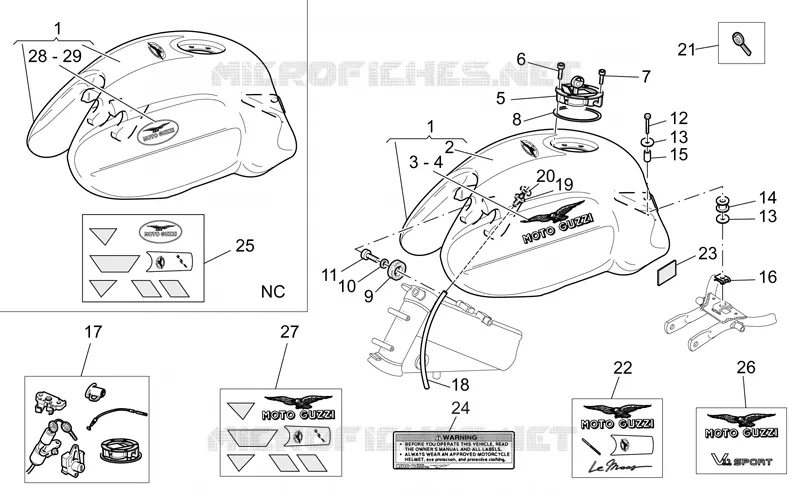

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
