1
Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Primary gear shaft
by
Generator - Regulator
Driven shaft
1
2
2
3
4
5
5
5
5
5
6
7
8
8
9
10
11
11
12
13
13
14
15
16
17
18
19
19
20
21
1
Upper lay shaft
GU04213600
Not Available
2
Hose 3a-5a-4a-6a
GU01214961
£81,76 Unit Price incl. VAT
2
Hose 3a-5a-4a-6a
GU04214901
£41,81 Unit Price incl. VAT
3
Engrenage 5a Z=28
GU01214060
£58,84 Unit Price incl. VAT
3
Engrenage 5a vel.Z=28
GU04214000
£531,60 Unit Price incl. VAT
4
Engrenage 1a Z=36
GU01214260
£70,38 Unit Price incl. VAT
4
Engrenage 1a vel.Z=36
GU04214200
£59,99 Unit Price incl. VAT
5
Roller cage 28x33x13
GU92252813
£36,65 Unit Price incl. VAT
6
Cage à rouleaux 28x33x17
GU92252817
£29,42 Unit Price incl. VAT
7
Manchon
GU04232500
£239,90 Unit Price incl. VAT
8
Hose 1a-2a
GU04213901
Not Available
8
Manchon 1a-2a
GU01213961
£124,55 Unit Price incl. VAT
9
Gear 3a vel.Z=30
GU04214700
Not Available
9
Engrenage 3a Z=30
GU01214760
£58,84 Unit Price incl. VAT
10
Rondelle
GU04214300
£26,46 Unit Price incl. VAT
11
Rondelle de séreté
GU04055000
£3,42 Unit Price incl. VAT
12
Bague
GU04055100
£15,97 Unit Price incl. VAT
13
Rondelle 2 mm
GU10214304
£10,00 Unit Price incl. VAT
14
Lower lay shaft
GU04220700
£353,02 Unit Price incl. VAT
15
Engrenage 4a vel.Z=30
GU04215000
£536,96 Unit Price incl. VAT
15
Gear 4a Z=30
GU01215060
Not Available
16
Gear 6a Z=23
GU01220560
Not Available
16
Gear 6a vel.Z=23
GU04220500
Not Available
17
Engrenage 2a Z=32
GU01214460
£65,76 Unit Price incl. VAT
17
Engrenage 2a vel.Z=32
GU04214400
£346,12 Unit Price incl. VAT
18
Manchon
GU04221400
£57,68 Unit Price incl. VAT
19
Engrenages transm.Z=19
GU01217530
£43,84 Unit Price incl. VAT
20
Bague seeger
GU90271228
£3,22 Unit Price incl. VAT
21
Rondelle éventail
GU04215401
£8,02 Unit Price incl. VAT

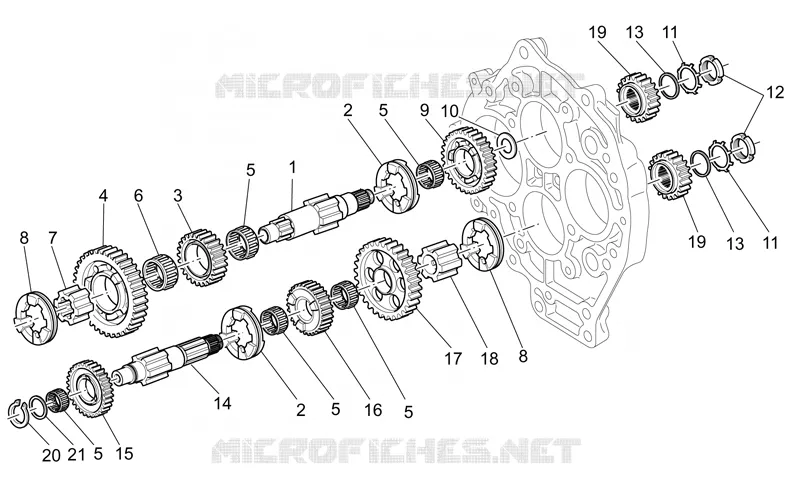

Find the detailed Driven shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
