1
Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Crankshaft cpl.
6
Parts Diagram
Parts Catalog
Cylinder head and valves
by
Timing system
Crankshaft cpl.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Cylinder with piston
GU01060190
Not Available
2
Piston assy
GU01060231
Not Available
3
Pistonring set
GU30060660
Not Available
4
Segment d'étanchéité
GU30060760
£75,68 Unit Price incl. VAT
5
Segment d'étanchéité
GU30060960
£52,38 Unit Price incl. VAT
6
Piston ring
GU30061060
Not Available
7
Piston pin
GU30061241
£114,19 Unit Price incl. VAT
8
Stop ring
GU90351038
Not Available
9
Gasket
GU14020865
£5,98 Unit Price incl. VAT
10
Joint torique
GU90706094
£1,87 Unit Price incl. VAT
11
Vis sans tête
GU12021800
£35,70 Unit Price incl. VAT
12
Stud bolt
GU12021700
Not Available
13
Bielle cpl.
GU01061532
£184,60 Unit Price incl. VAT
14
Connecting rod screw
GU01062230
£54,70 Unit Price incl. VAT
15
Bague
GU91112128
£67,02 Unit Price incl. VAT
16
Demi-coussinet
GU01062030
£21,38 Unit Price incl. VAT
16
Bearing half-shell min.0,762
GU01062033
Not Available
16
Bearing half-shell min.0,508
GU01062032
Not Available
16
Bearing half-shell min.0,254
GU01062031
Not Available
17
Crankshaft cpl.
GU01064131
Not Available
18
Bouchon
GU37065405
£15,98 Unit Price incl. VAT
19
Volant cpl.
GU04067000
£886,46 Unit Price incl. VAT
20
screw
GU12067701
£0,72 Unit Price incl. VAT
21
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
22
Couronne
GU01067930
£632,70 Unit Price incl. VAT
23
screw
GU37067705
£0,42 Unit Price incl. VAT
24
Washer 6,4x10x0,7
GU14217901
Not Available

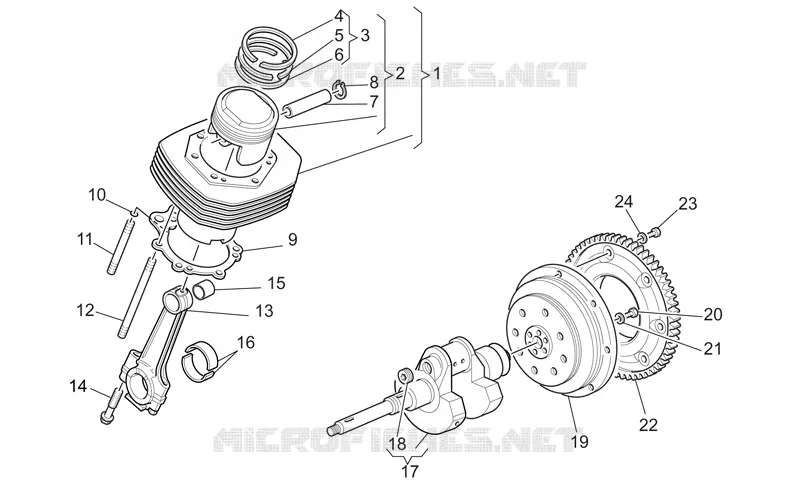

Find the detailed Crankshaft cpl. MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
