1
Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Le Mans
5
Parts Catalog
Crank-case
6
Parts Diagram
Parts Catalog
Electrical system
by
Cylinder head and valves
Crank-case
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
1
Crankcase black
GU01000790
Not Available
2
Disc
GU12003900
Not Available
3
Vis sans tête M8X66
GU96508066
£50,56 Unit Price incl. VAT
4
Rondelle 8,4X15X1,8
GU95008208
£1,27 Unit Price incl. VAT
5
Maintenance
GU01424630
£18,40 Unit Price incl. VAT
6
Douille d'accouplement
GU12018900
£10,75 Unit Price incl. VAT
7
Vis sans tête M8x75
GU96508075
£13,44 Unit Price incl. VAT
8
Ecrou bridé M8
GU92660021
£1,60 Unit Price incl. VAT
9
Goupille
GU95512081
£4,34 Unit Price incl. VAT
10
Complete flange
GU14011900
Not Available
10
Flange min.0,2 mm
GU14011901
£50,76 Unit Price incl. VAT
11
Goupille
GU12012200
£15,28 Unit Price incl. VAT
12
Vis
GU98084425
£1,02 Unit Price incl. VAT
13
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
14
Cover gasket
GU05001230
Not Available
15
Timing cover black
GU01001490
Not Available
16
Vis TCEI M6x25
GU98682325
£1,26 Unit Price incl. VAT
17
Hex socket screw M6x35
GU98680335
£0,35 Unit Price incl. VAT
18
Bouchon
GU30002100
£23,59 Unit Price incl. VAT
19
Bague d'étanchéité 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
20
Bride
GU18001150
£13,20 Unit Price incl. VAT
21
Alternator cover grey
GU01001630
Not Available
22
Vis
GU98310631
£1,58 Unit Price incl. VAT
23
Caoutchouc
GU19007700
£4,44 Unit Price incl. VAT
24
Gasket
GU01003650
£11,50 Unit Price incl. VAT
25
Flange black
GU01003290
Not Available
26
Joint
GU01003600
£12,05 Unit Price incl. VAT
27
Oil sump black
GU01003590
Not Available
28
O-ring
GU90706948
£12,05 Unit Price incl. VAT
29
Plug
GU01003400
£78,97 Unit Price incl. VAT
30
Hex socket screw M6x22
GU98682322
£1,20 Unit Price incl. VAT
31
Rondelle 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
32
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
33
Garniture
GU10528900
£4,45 Unit Price incl. VAT
34
Oil level plug
GU01004900
Not Available
35
Joint torique 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
36
Vis sans tête M8X51
GU96508051
£12,79 Unit Price incl. VAT
37
Adhesive label
GU02517700
Not Available
38
Engine black
GU01991092
Not Available
38
Engine black
GU01991091
Not Available
39
Gasket
GU12011800
£3,74 Unit Price incl. VAT
40
Complete flange
GU12011400
Not Available
40
Bride min.0,4 mm
GU12011402
£61,15 Unit Price incl. VAT
40
Bride min.0,6 mm
GU12011403
£61,15 Unit Price incl. VAT
40
Bride min.0,2 mm
GU12011401
£63,46 Unit Price incl. VAT
41
Pin
GU12011700
£14,52 Unit Price incl. VAT
42
Bague d'étanchéité
GU90405367
£35,53 Unit Price incl. VAT
43
Motor/gear ch.trasm.gasket set
GU01999030
Not Available
44
Motor/gear ch.tras.oil ret.set
GU01999530
£358,18 Unit Price incl. VAT
45
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

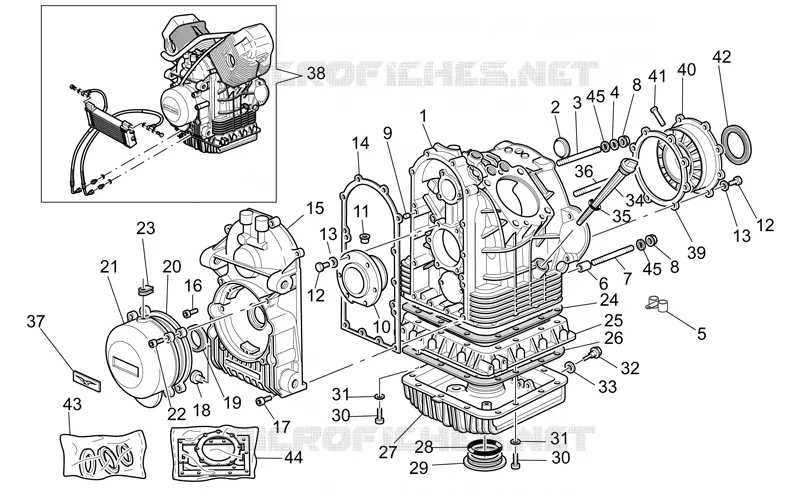

Find the detailed Crank-case MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
